Induction motor YE2 series
three-phase220 V690 V

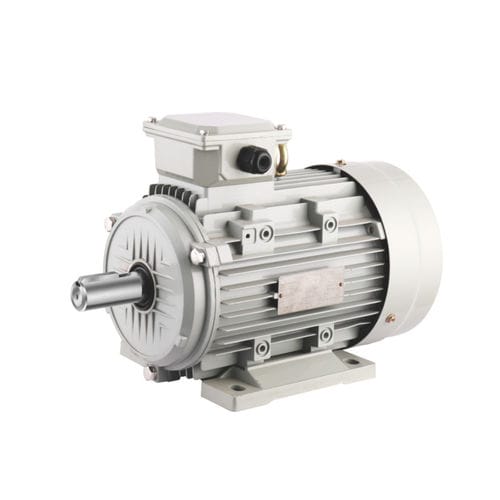

Induction motor - YE2 series - KONGDE motor - three-phase / 220 V / 690 V
Induction motor - YE2 series - KONGDE motor - three-phase / 220 V / 690 V
Induction motor - YE2 series - KONGDE motor - three-phase / 220 V / 690 V - image - 2
Induction motor - YE2 series - KONGDE motor - three-phase / 220 V / 690 V - image - 3
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
220 V, 690 V, 660 V, 380 V
Configuration
squirrel cage, aluminum-frame, compact
Protection class
dust-proof, IP54, IP55
Number of poles
4-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for water pumps, food, oil pump, packaging machine, industrial, for air compressors
Other characteristics
high-efficiency, high-torque, low-noise, low-vibration
Power

Max.: 315 kW
(428.28 hp)

Min.: 0.75 kW
(1.02 hp)

Rotational speed

1,500 rpm, 3,000 rpm
(9,424.778 rad.min-1, 18,849.5559 rad.min-1)

Max.: 2,970 rpm
(18,661.0604 rad.min-1)

Min.: 1,390 rpm
(8,733.6276 rad.min-1)

Description

YE2 SERIES THREE-PHASE INDUCTION MOTOR FEATURES YE2 series aluminum three-phase asynchronous motor is a kind of TEFC squirrel cage motor with the national unified design, it has the characteristic of high efficiency,energysaving,hight starting torque,low noise,low vibration and easy maintenance,the grade of power and the mounting mesasurement are subject to the IEC standard.This sériés motor is commonly used in the machinery without special requirement specially for reducer,air compressor, water pump, oil pump packing and food machinery and so on. OPERATIONG CONDITIONS Ambient temperature:-15 °C<0<40°C Altitude: not exceeding 1000 meters Voltage: 220 / 380V 230 / 440V 380 / 660V 400 / 690V Rated Frequency: 50HZ 60HZ Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more. Duty/Rating: Conntinuous(SI). Insulation class: F, the température rise of the stator winding is examined at 80K(by résistance method). Protection class: The main body of the motor is IP54, but the terminal box reaches IP55. Cooling type: IC411
