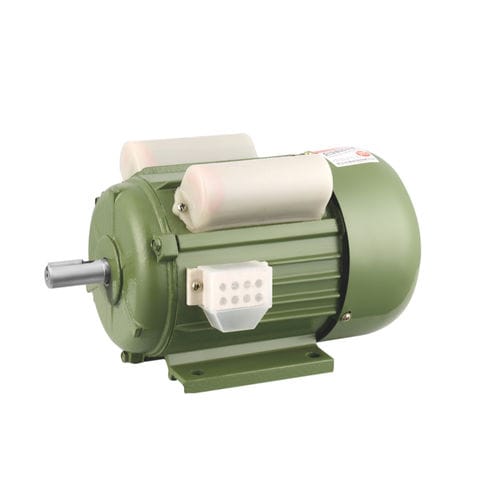

Induction motor JY seriessingle-phasewith start capacitoraluminum-frame
Add to favorites
Compare this product
Characteristics
- Type
- induction, single-phase
- Configuration
- with start capacitor, aluminum-frame, cast iron, compact
- Protection class
- IP44, IP54
- Number of poles
- 4-pole, 2-pole
- Cooling mechanism
- air-cooled
- Applications
- for medical equipment, industrial, for air compressors, for refrigerators
- Power
Max.: 1.1 kW
(1.5 hp)Min.: 0.18 kW
(0.24 hp)- Rotational speed
1,400 rpm, 2,800 rpm, 2,850 rpm
(8,796.4594 rad.min-1, 17,592.9189 rad.min-1, 17,907.0781 rad.min-1)- Diameter
156 mm, 176 mm, 190 mm
(6.14 in, 6.93 in, 7.48 in)
Description
JY SERIES SINGLE-PHASE VALUE CAPACITOR START INDUCTION MOTOR
FEATURES
JY series single-phase capacitor start induction motor is widely used in air compressors, refrigerators, medical apparatus and other small machines requiring full-load starting, a large starting torque and limited starting current.
These sériés motors are totally enclosed fan-cooled, with three trame sizes, 09, 1, 2.The trames are made of cast iron or cast aluminium according to the requests.
OPERATING CONDITIONS
Ambient temperature: -15°C<0<40°C
Altitude: Not exceeding 1000meters
Protection type:IP44/IP54
Cooling type:IC 0141
Insulation class:B/F
Rated frequency: 50Hz (60Hz is available on request)
Duty/Rating:Continuous (S1)
