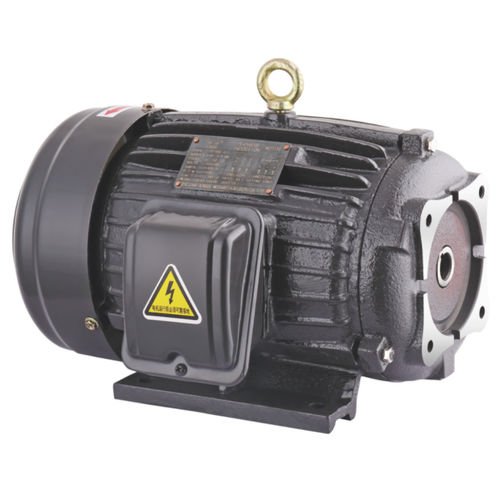

Pump motor YT series
three-phaseasynchronous380 V

pump motor
pump motor
pump motor
pump motor
pump motor
pump motor
pump motor
Add to favorites
Compare this product

Characteristics

AC/DC
three-phase
Type
asynchronous
Voltage
380 V
Other characteristics
4-pole, 6-pole, for pumps, industrial, compact
Power

Max.: 30 kW (40.789 hp)

Min.: 0.75 kW (1.02 hp)

Description

YT SERIES SPECIAL MOTOR PUMP FEATURES The family belongs to Taiwan SAN YOU pump motor referred SY motor. SY axis motor hollow shaft motor, also called non-axis motor. Mainly used in the hydraulic machine equipment, after the motor needs with dedicated pumps for use on hydraulic motors, the motor is within the bore axis motor.. INSTALLATION IS DIVIDED INTO Horizontal, vertical; motor pôles into: 4-pole and 6-pole; generally voltage three-phase 380V, also allows customized other voltage or frequency. SY SERIES FEATURES 1, the motor is within the shaft, with the pump should be directly opposite a match without even the shaft, thereby reducing installation space, easy assembly. 2, high précision mating surfaces of the motor and pumps to match coaxial match, no professional installation, face the shaft, low noise, low heat. POWER ISDIVIDEDINTO 0.75KW, 1.2KW, 1.5KW, 2.2KW, 3.0KW, 3.7KW, 5.5KW, 7.5KW, 11KW, 15KW, 18.5KW, 22KW, 30KW. PERFORMANCE Efficiency can meet the three requirements of national standard GB /T18613-2012 of; rotation performance can reach GB14711 -2013; electrical performance can reach GB755-2008.
