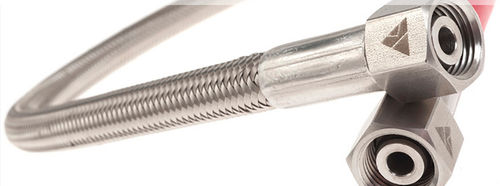

PTFE hose Lifeflex®hydraulicfor fuelfor hydrocarbons
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic, for fuel, for hydrocarbons
- Material
- PTFE
- Applications
- high-pressure, for automotive applications
- Other characteristics
- smooth, with smooth inner surface, anti-static, rugged, stainless steel-braided, PTFE inner liner, fiberglass-reinforced
- Inner diameter
Min.: 4.91 mm
(0.193 in)Max.: 25.53 mm
(1.005 in)- Outer diameter
Min.: 9.58 mm
(0.377 in)Max.: 35.69 mm
(1.405 in)- Pressure
Min.: 69 bar
(1,000.76 psi)Max.: 276 bar
(4,003.042 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 260 °C
(500 °F)
Description
Kongsberg Automotive's patented Flourocomp given a robust edge with a high tensile stainless steel braid. Used in the most arduous of applications when strength and resilience coupled with PTFE’s unique qualities are required.
- Applications:
Patented high performance hose, used in the most robust applications due to its aversion to kinking.
- Inner layer construction:
Smoothbore PTFE tube with integral PTFE impregnated glassfibre braid - PTFE according to “ISO12086, Part 1.PTFE-E.P.D.M 1.6.1.C.E.4_12”.
- Outer Layer construction:
High tensile 304 maypole wound Stainless Steel braid.
- Temperature range:
-60°C to +260°C (-76°F to +500°F)
- Other:
Antistatic liners are available for the Lifeflex range along with various braids.
