Visible spectrophotometer CM-1 series

BluetoothUSBdiode array

Overview

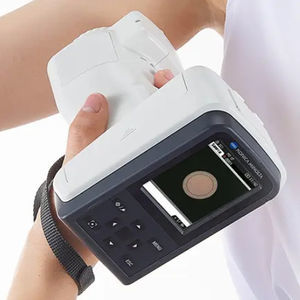

The Konica Minolta CM-17d and CM-16d spectrophotometers are vertical portable color measurement instruments designed for a wide range of applications, including plastics, consumer electronics, paints and coatings, personal care products, automotive interior, packaging, building materials and more. They succeed the CM-700d and CM-600d models and offer improved accuracy, repeatability, faster measurement speed and enhanced usability.

Key Features

• High inter-instrument agreement and high repeatability for consistent color communication across the supply chain.
• Fast measurement speed: approx. 0.7 s (SCI or SCE).
• Various measuring apertures for different sample sizes, including shaped or curved surfaces; MAV and SAV options.
• Camera viewfinder (live preview) available on CM-17d for easy measurement positioning.
• Optional wireless LAN/Bluetooth module for data transfer and connectivity.
• Screw/tripod hole at the front for mounting custom adapters, jigs or robotic arms; optional adapter/jig available for upside-down measurements.
• New cradle for CM-17d enabling zero calibration and charging; dedicated compartment for storing the white calibration cap.
• Supported software: Configuration Tool CM-CT1 for setup/standardization; optional SpectraMagic NX2 (advanced color formulas, custom illuminants, QC templates, tagging, etc.).
• Wavelength Analysis & Adjustment (WAA) function for routine performance checks and wavelength shift correction.

Trusted by Industry
Used for color quality control and analysis across multiple industries requiring accurate color measurement and reliable inter-instrument agreement.

Applications

• Plastics
• Paints and coatings
• Consumer electronics
• Personal care products
• Automotive interior
• Packaging
• Building materials

Caractéristiques / spécifications techniques

• Model: CM-17d (and) CM-16d
• Illumination/viewing system: di:8°, de:8° (diffuse illumination: 8° viewing); SCI (specular component included) / SCE (specular component excluded) switchable
• Applicable standards: Conforms to ISO7724/1, CIE No.15 (2004), ASTM E 1164 (SCI), DIN5033 Teil7, JIS Z 8722 Condition c
• Integrating sphere: Ø40 mm
• Detector: Dual 32-element silicon photodiode arrays
• Spectral separation device: Planar diffraction grating
• Wavelength range: 400 nm to 700 nm
• Measurement wavelength pitch: 10 nm
• Half bandwidth: Approx. 10 nm
• Reflectance range: 0 to 175%; Resolution: 0.01%
• Light source: Pulsed xenon lamp (with UV cut filter)
• Measurement time: Approx. 0.7 s (SCI or SCE, from pressing trigger to completion)
• Minimum measurement interval: Approx. 1.5 s (SCI or SCE)
• Battery performance: Approx. 2,000 measurements (approx. 1,000 when using optional WLAN/Bluetooth module) at 10-second intervals at 23°C with dedicated lithium battery, without using electric viewfinder
• Measurement area / illumination area: MAV: Ø8 mm / Ø11 mm; SAV (CM-17d only): Ø3 mm / Ø6 mm (target mask replaceable and lens position switchable)
• Repeatability: CM-17d: standard deviation within ΔE*ab 0.02 (white calibration plate measured 30 times at 5 s intervals); CM-16d: standard deviation within ΔE*ab 0.04
• Inter-instrument agreement (IIA): CM-17d: within ΔE*ab 0.12 (average of 12 BCRA Series II color tiles, MAV SCI); CM-16d: within ΔE*ab 0.20
• Display: 2.7-inch TFT color LCD with reversible portrait viewing mode
• Internal performance check: WAA (Wavelength Analysis & Adjustment) technology
• Interface: USB 2.0; optional WLAN (IEEE 802.11 b/g/n) and Bluetooth (Ver.4.1, SPP-compatible) via optional module
• Camera viewfinder function: using internal camera; images can be shown on display (CM-17d only)
• Observer: 2° and 10° standard observers supported
• Illuminants: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, LED-B1..B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, plus user-defined illuminant (max 3 types) — simultaneous evaluation with two light sources possible (user-defined requires optional SpectraMagic NX2 Pro)
• Display items: colorimetric values/graph, color difference values/graph, spectral graph, pass/fail judgment, pseudocolor
• Color spaces: L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, Munsell (C)
• Indices: MI, WI, YI, ISO brightness, WI/Tint, Tristimulus Strength, Opacity, Grey scale, gloss value, user index (requires Configuration Tool CM-CT1 and valid SpectraMagic NX2 license), Blackness (My), Jetness (Mc), Undertone (dM)
• Color difference equations: ΔE*ab (CIE1976), ΔE*94 (CIE1994), ΔE00 (CIEDE2000), CMC (l:c), Hunter ΔE, DIN99o, FMC-2, ΔE*94 (Special) (special ΔE modes available)
• Data memory: 1,000 target data + 5,000 sample data
• Power: AC supply via USB Type-C AC adapter (Power Delivery compatible, 15 W or more); removable lithium-ion battery; USB charging via USB bus power (with battery installed)
• Charging time: Approx. 3.5 h (rapid charge) / approx. 6 h (standard)
• Size (W×H×D): Approx. 79 × 230 × 128 mm
• Weight: CM-17d approx. 700 g (battery included); CM-16d approx. 660 g (battery included)
• Operating temperature / humidity: Temperature 5 to 40°C; relative humidity 80% or less (at 35°C) with no condensation
• Storage temperature / humidity: Temperature 0 to 45°C; relative humidity 80% or less (at 35°C) with no condensation
• Additional notes: Camera viewfinder function is only available on CM-17d; WLAN/Bluetooth requires optional accessory CM-A300; WAA function available free for first year after purchase and can be continued via service/calibration.
