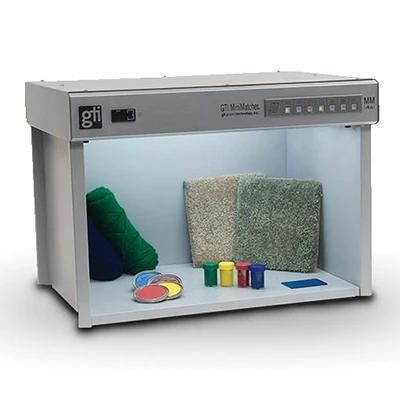

Color viewing light booth MM-4E

Product Overview
The MM-4e Controlled Lighting unit provides five spectrally dissimilar illumination sources for color comparison, visual color assessment, metamerism detection and simulation of client lighting conditions. The unit is programmable for one-touch automatic source sequencing and features a digital control with an illuminated push button. A daylight lamp timer is built in.

Intended Applications

• Inspection and color discrimination of inks
• Paints
• Textiles
• Plastics
• Paper
• Colorants
• Other colored materials

Five Standard Light Sources

• Artificial Daylight (D65 or D50)
• Store Light (CWF or TL84)
• Home Light (Incandescent A or Horizon)
• User-selectable source (D50, 30U, TL84, TL83)
• Ultraviolet (UVA BLB)

Voltage / Standard Source Mapping
Standard Light Sources - 120 Volt Models - 230 Volt Models
Daylight*: Artificial Daylight (D65) - Artificial Daylight (D65)
Store Light: Cool White Fluorescent - TL84 Fluorescent
Home Light: Incandescent (Illuminant A) - Incandescent (Illuminant A)
Optional*: TL83 3000K standard - TL83 3000K standard
Ultraviolet: UVA (BLB) - UVA (BLB)
*Other fluorescent viewing sources can be substituted.

Additional Information
Programmable one-touch sequencing, illuminated digital control push button, spectrally dissimilar sources for metamerism detection, built-in daylight lamp timer. Viewing area referenced in specifications.

Specifications

• Model: MM-4e Controlled Lighting
• Viewing area: 14.25" x 24" x 16" (36 cm x 61 cm x 41 cm)
• Surround: Munsell N7 / neutral gray surround
• Five standard light sources: D65 or D50, CWF or TL84, Incandescent A or Horizon, user-selectable source, Ultraviolet (UVA BLB)
• Programmable automatic light source sequencing (one-touch)
• Digital control with illuminated push button
• Built-in daylight lamp timer
• Optional TL83 3000K source available
