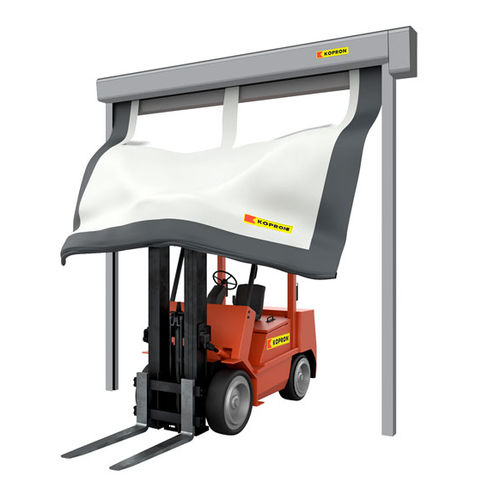

A self-repairing high speed rolling door with the characteristics of the Fast Roll category plus a whole series of special side guides made from self-lubricating PVC, fitted onto special oscillating supports that follow the movements of the curtain. The quick door is self-repairing after a possible accidental knock, the curtain releases itself from the side guides and in the next closing cycle it automatically returns to its guides, restoring operation.
Care for detail, the extremely high quality of structural materials and automation, innovation in the coupling system of the curtain structure make the Replay door a highly technologically advanced product.
Technical characteristics
OPENING / CLOSING SPEED: UP TO 2 M / SEC – 0.8 M/SEC.
CONTROL PANEL: DIGITAL TECHNOLOGY WITH INVERTER
END STOP: ENCODER
SUPPLY: 220 VOLTS
SAFETY EDGE COMPLIANT WITH THE NORM EN 12978
OPENING AND CLOSING CYCLES EN 12604: TESTED UP TO 1,000,000 CYCLES
TEAR-PROOF DOUBLE LAYER PVC CURTAIN, CLASS 2, MINIMUM TEMPERATURE – 30° AND MAXIMUM TEMPERATURE + 70°
