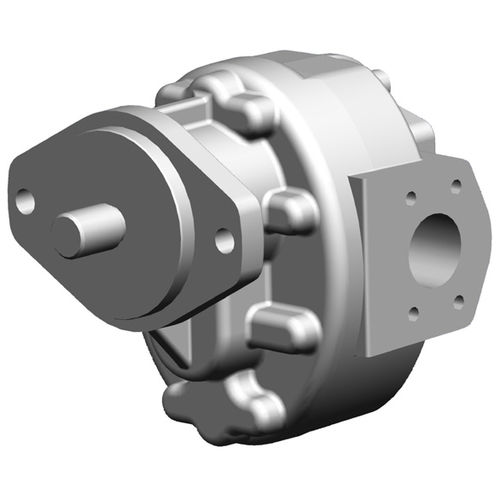

KP series high pressure gear pumps are mainly used in oil-hydraulic plants. They are suitable both for hydraulic fluids as well as mineral oil bases (DIN 51524/25) and engine oils (DIN 51511). The housing components are made from high-grade cast iron, the shaft and gears from hardened and ground case-hardening steel. The shafts are supported in multi-layer bearings that have excellent antifriction properties. The seals in the drive shaft ends are made using solely NBR or FKM shaft seals. An outboard bearing is placed on the shaft end to handle radial and axial forces. The use of fine-meshed filters significantly increases the gear pump service life. Careful maintenance is the prerequisite.
1. External loads
The robust design facilitates handling external radial forces, depending on the size and direction of application.
2. Direction of rotation
The following stipulations apply to the direction of rotation when looking at the drive shaft end: Shaft rotation clockwise: direction of conveyance from left to right Shaft rotation counter clockwise: direction of conveyance from right to left
