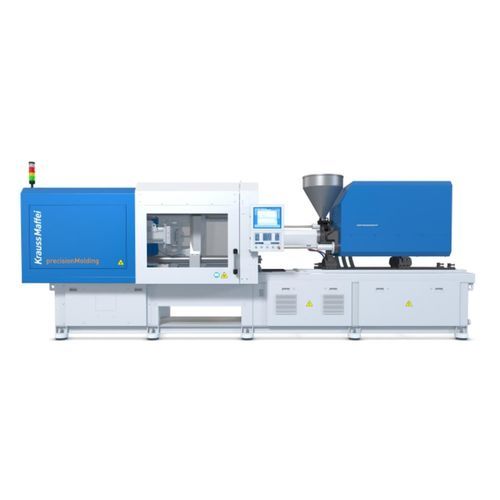

Horizontal injection molding machine precisionMolding

fully-electrictogglemodular

Overview
The precisionMolding series provides a standardized, cost-effective all‑electric solution for producing simple plastic parts. It is an entry-level machine that combines high performance, straightforward operation and short delivery times. Typical application sectors include packaging, electrical & electronics, medical and automotive.

Key features

• All‑electric machine concept for energy-efficient operation
• Large mold mounting plates with broad support of the moving platen on precision linear guides to ensure accurate mold parallelism
• 5-point toggle system: large mold opening stroke; robust, smooth-running mechanism with minimal tolerance; spindle drive for crosshead with low inertia; uniform force transmission to the moving platen
• Versatile servo drive technology: servo motor for efficient mold movement and dynamic clamping force build-up; high resolution for precise mold positioning; integrated mold safety functions
• Symmetric force transmission for leak-free nozzle contact using two parallel ball screws, centered force introduction and electric-driven nozzle contact
• MCP1 control (MCP1 / MC P1): modern 15" multi-touchscreen with hardkeys for intuitive operation and easy MES integration
• Optional APCplus (Adaptive Process Control) for improved process stability and zero-defect production

Advantages

• Efficient: high-precision injection molding with excellent repeatability and proven high-end plasticizing units
• Easy to operate: user-friendly MCP1 control; straightforward integration of automation solutions; interfaces for higher-level control systems
• Cost-effective: optimized price-performance ratio; modular concept enabling quick delivery and a wide range of options; proven KraussMaffei technology for reliable part production

Applications

• Packaging
• Electrical & electronics
• Medical, pharmaceuticals and cosmetics
• Automotive

Combination & automation options
The machine can be combined with KraussMaffei automation (LRXplus linear robots, IR industrial robots) and digital solutions such as APCplus and MC control families. The modular concept supports fast integration of automation and peripheral equipment for tailored system solutions.

Technical specifications

• Commercial designation (series): precisionMolding
• Clamping force / nominal range: 500 - 4,500 kN (series range indicated on page)
• Machine type: all-electric injection molding machine
• Mold platen: large mold mounting plates with broad support on precision linear guides for accurate mold parallelism
• Clamping mechanism: robust toggle / spindle components with low inertia; symmetric force transmission via two parallel ball screws
• Drive technology: servo-driven clamping and mold movement; spindle drive for crosshead; electric-driven nozzle contact
• Injection/plasticizing: proven high-end plasticizing units (standard on platform)
• Control: MCP1 / MC P1 15" multi-touch control with hardkeys; intuitive operation and MES integration capability
• Process control: APCplus available for adaptive process control and zero-defect production
• Energy efficiency: high energy efficiency due to all-electric concept
• Typical target industries: packaging, electrical & electronics, medical, automotive
• Modularity: modular concept enabling quick delivery and a wide range of options and peripherals
