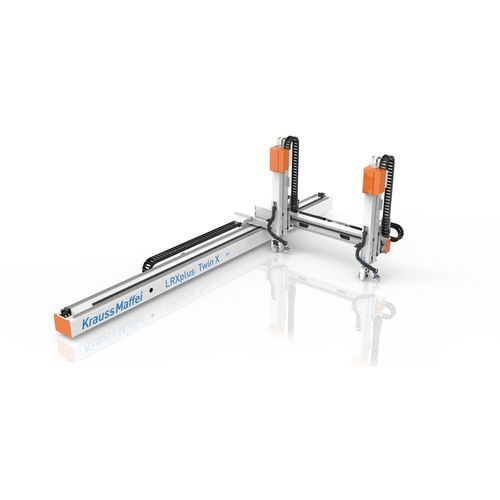

Cartesian robot LRXplus Twin

gantry6-axismold-release

Overview
The LRXplus Twin combines two linear robots on a common axis to enable parallel processes for increased productivity and reduced cycle times while occupying a compact footprint.

Key product information

• Compact footprint suitable for tight production cells
• Fast part removal designed for short cycle times
• Scalable: supports up to four robots with six axes each (max. 24 axes)
• Simple process synchronization for overlapping operations

Variants

• Twin X

  • Characteristic: Mechanically linked Y-axes on a shared X-axis
  • Application: Simultaneous demolding or placement inside the mold at short mold-open times
  • Benefits: Time savings with three-plate molds and parallel mold operations
• Twin Z

  • Characteristic: Mechanically linked X-axes on a shared Z-axis
  • Application: Component transfer (handshake) during rapid removal, stacking or packaging and integration with ovens or pre/post-treatment stations
  • Benefits: Space and time savings on automated units with overlapping motion ranges

Combination options / Extensions

• Compatible with multiple machine series and automation concepts (see product page for example combinations)
• Integrable with several injection molding machines and automation cells to streamline workflows

Characteristics / technical specifications

• Payload range: 35 kg - 100 kg (as indicated in the product title)
• Two linear robots mounted on a common axis enabling parallel operation
• Supports up to four robots with six axes each (maximum 24 axes)
• Engineered for short cycle times and fast part removal
• Available variants: Twin X (Y-axes linked on shared X-axis) and Twin Z (X-axes linked on shared Z-axis)
• Typical applications: simultaneous demolding, insertion/placement, component transfer, stacking, packaging and post-treatment integration
• Main benefits: increased productivity, reduced cycle times, compact footprint and simplified process synchronization
