Molds and tool sprue puller SPX10

Product overview

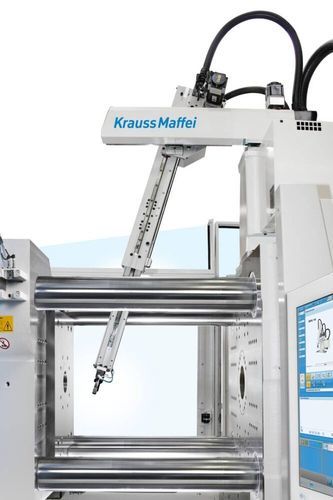

The SPX10 sprue picker from KraussMaffei is a compact servo-driven automation unit designed for integration with injection moulding machines where space is limited. Its inward-guided telescoping stroke and protective housing allow installation in low-ceiling environments while forming a single unit with the machine for minimal footprint.

Key features

• Telescoping stroke: Inward-guided rail system that halves the total mechanical stroke in home position, avoiding upward extension typical of fixed axes.
• Servomotor: High-speed electric drive reduces maintenance and eliminates the need for compressed air associated with pneumatic systems; integrated control for optimized cycles.
• WizardX: Fully integrated into the MC6 control system for guided, step-by-step programming directly from the machine interface.
• Quick demolding: Configurable gripper waiting position (e.g., just above the mould) shortens removal time and supports faster machine cycles.

Additional product information

• Simple programming via WizardX
• Shared data set between injection moulding machine and sprue picker within MC6
• Complete system solution: machine and automation from one supplier
• Compact design with protective housing for safe operation

Extensions / combination options

• Typical combinations and families: CX series (hydraulic), PX series (all-electric), LRXplus linear robots (5 kg–100 kg), LRXplus Twin (35 kg–100 kg), IR industrial robots (8 kg–210 kg)

Technical specifications

• Handling capacity: 1 kg
• Design: Compact, stable unit with protective housing; integrates as a single unit with the injection moulding machine
• Stroke type: Telescoping stroke (inward-guided rail) — reduces total mechanical stroke by approx. 50% in home position
• Drive: Servomotor — fast operation, reduced maintenance, no compressed air required
• Control: Full integration into MC6 control system; shared dataset with the machine
• Programming: WizardX for guided, simplified programming
• Parking / waiting position: Optimized parking for mould change; freely configurable gripper waiting position for quick demoulding
• Installation environment: Suitable for low-ceiling halls and very small installation footprints
• System scope: Designed as an automation add-on forming a single unit with the machine
