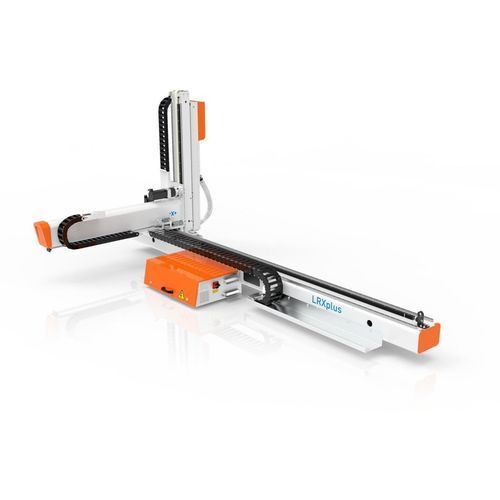

Cartesian robot LRXplus

parallelgantry3-axis

Product overview
The LRXplus linear robots provide seamless integration with injection molding machines and peripheral systems, offering configurable payloads from 5 to 100 kg for a wide range of automation tasks. Designed for straightforward retrofitting and modular configuration to match specific production requirements.

Key features

• High technical availability and precise repeatability
• Intuitive MC7 control for simplified operation
• Compatibility with machines from other manufacturers via EUROMAP 67
• Modular design for customer-specific configurations

Highlights & functional details

• Sturdy axles
  • Aluminium/steel material mix to limit damage in case of collision
• Economical servo drives
  • Fast acceleration and short cycle times
• New motors and controllers
  • One-cable technology for simplified connection and service
  • Standardized layout for minimal maintenance time
• Parallel movement of all axes
  • Short removal times and flexible demoulding operations
• Improved cooling
  • Optimized airflow and additional control cabinet outlets; approved for operation up to 45°C
• Flexible retrofitting
  • Compatibility with other manufacturers via EUROMAP 67
  • Interfaces and communication protocols adapted for system integration
• Highest modularity
  • Configurable modules to meet individual customer processes
• Dynamic safety zones
  • Enhanced system reliability for complex automation cells
• Reliable communication via VARAN-BUS
  • High control accuracy within tight tolerances

Combination options / Typical machine pairings

• CX series (500 - 4,200 kN)
• GX series (4,000 - 14,500 kN)
• MX series (16,000 - 60,000 kN)
• PX series (500 - 4,000 kN) and all-electric PX series (800 - 2,000 kN)
• powerMolding (6,500 – 16,000 kN)
• precisionMolding (500 - 4,500 kN)

Product information / benefits
The LRXplus series is engineered for short cycle times, reduced maintenance effort and flexible integration into existing production lines. Modular construction and standardized interfaces accelerate commissioning and simplify upgrades.

Available media (no links provided)

• Linear robot LRXplus — product brochure (PDF, ~8.5 MB)
• Videos: "Simply. Always. Fits - The new linear robot LRXplus" (animation) and "Live @Fakuma 2024 - The new linear robot LRXplus"

caractéristiques / spécifications techniques

• Payload / handling capacity: 5 kg — 100 kg
• Control: MC7 (intuitive operation)
• Drive technology: economical servo drives; new motors and controllers with one-cable technology
• Mechanical design: sturdy axles with aluminium/steel mix
• Cooling: optimized airflow; additional air outlets for control cabinet; approved operation up to 45°C
• Communication / interfaces: EUROMAP 67; VARAN-BUS
• Retrofitting: compatible with other manufacturers' machines (EUROMAP 67)
• Modularity: highly modular, configurable to individual customer requirements
• Safety: dynamic safety zones for high system reliability
• Accuracy: high control accuracy and precise repeatability for tight tolerances
