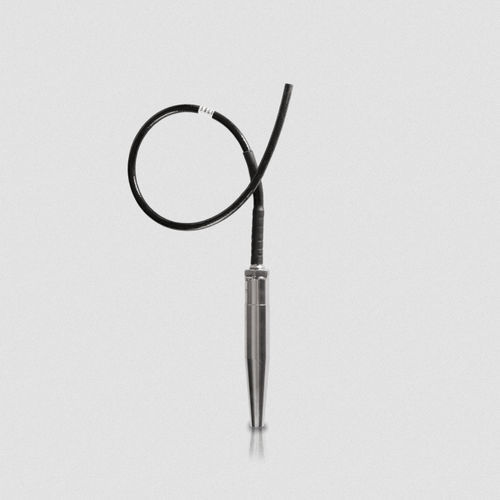

Pt100 temperature sensor OPTITEMP TRA-W80

RTDPt1000insertion

Resistance (RTD) cable sensor for measurement of soil temperature • To be inserted or buried in the ground • Stainless steel sheath and tapered tip, IP68 rated • -40…+115°C / +239°F The OPTITEMP TRA-W80 is a cable sensor (RTD) for soil temperature measurement or similar applications. The heavy duty sensor is designed to withstand high pressures and harsh environments. The robust, oil-tight cable can handle a maximum tensile load of 900N. Its cable can be pulled so as to move the sensor even if buried. The ground temperature sensor features a Pt100 or Pt1000 measuring element that is placed in the tip of the tube filled with heat transfer compound for fast response times. The measuring range of the sensor is -50…+200°C / -58…+390°F. The OPTITEMP TRA-W80 comes with an oil-tight and UV proof Hytrel® insulated connecting cable as standard. Product highlights • Temperature measurement in harsh environments and subsoil applications (e.g. underground pipelines) • Heavy duty design: oil-tight, vibration and UV proof, IP68 • Sheath material: Stainless steel (1.4404 / 316L) • Tolerance class A according to IEC 60751 as standard • Available with Hytrel® insulated connecting cable • Standard or customised lengths • Ingress protection: IP68 Typical applications • Monitoring of soil temperature to determine the frost depth for save pipeline operation • Suitable for heavy duty applications in almost all industries Product details Alternative product categories : Ground temperature sensor, Potentiometer, Pt100 element, Pt100 probe, Resistance temperature detector, Resistance thermometer, RTD, Soil temperature probe, Soil temperature sensor
