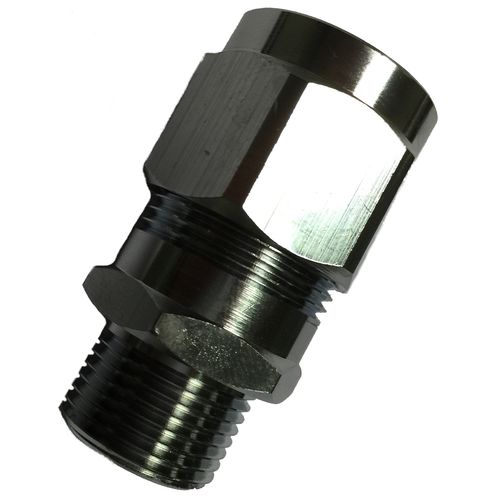

Nickel-plated brass cable gland PA series
stainless steelbrassIP66

Nickel-plated brass cable gland - PA series - KROMA MEC SRL - stainless steel / brass / IP66
Nickel-plated brass cable gland - PA series - KROMA MEC SRL - stainless steel / brass / IP66
Nickel-plated brass cable gland - PA series - KROMA MEC SRL - stainless steel / brass / IP66 - image - 2
Add to favorites
Compare this product
Go to the KROMA MEC SRL website for more information

Characteristics

Material
nickel-plated brass, stainless steel, brass
Protection level
IP66
Other characteristics
threaded, for armored cables
Cable diameter

Max.: 92 mm
(3.62 in)

Min.: 4 mm
(0.16 in)

Thread diameter

Max.: 4 in

Min.: 0.5 in

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Cable glands for indoor dry dusts not chemically corrosive to the armor of the cable. Seal on the internale cable insulation under armour Materials: Brass - Brass Nickel Plated - Stainless Steel 304/316 Components: - 1 gland nut. - 2 armour clamping ring. - 3 armour clamping cone. - 4 W/P and Exd seal. - 5 gland body
