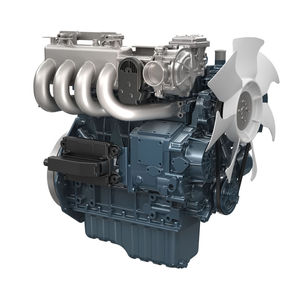

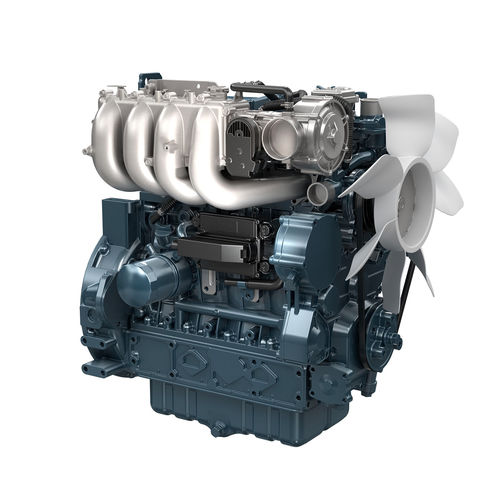

Engine model: WG3800-G-E3
Emission regulation: EPA Tier 2/CARB Tier 3
Type: Vertical, water cooled 4-cycle spark ignited engine
Fuel Type: Gasoline
Bore and stroke - mm (in): 100.0 x 120.0 (3.937 x 4.724)
Displacement - L (cu.in): 3.769 (230.0)
Aspiration - Naturally aspirated
Aftertreatment - Three-way catalyst
Rated output / speed*1 kW (HP) / rpm: 65.0 (87.1) / 2600
Maximum torque / speed Nm (lb-ft) / rpm: 256.0 (188.9) / 1400
Length x Width x Height*1 mm (in): 700 x 579 x 799 (27.6 x 22.8 x 31.5)
Dry weight*2 kg (lb): 288 (635)
FEATURES and BENEFITS
Kubota’s WG3800-G-E3 engine has been designed to comply with EPA Tier 2 / CARB Tier 3.
The installation compatibility that exists between Spark-Ignition engines (SI) and Compression-Ignition engines (CI) is convenient for customers who need fuel flexibility for their products. The
Kubota WG3800 includes gasoline, LPG, and natural gas versions, as well as a dual fuel version (gasoline and LPG) to meet customer needs.
Durability and Reliability
Kubota’s WG3800 SI engines are designed based on Kubota V3800 diesel (CI) engines, which are known worldwide as reliable industrial engines and feature combustion chambers, as well as fuel and ignition systems dedicated for SI engines. The WG3800 engine offers very low vibration and extremely low noise.
