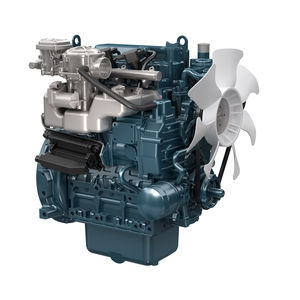

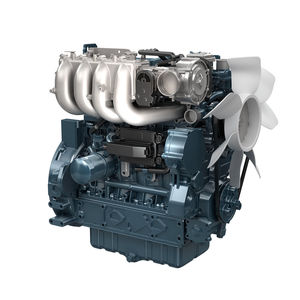

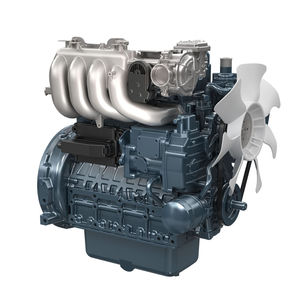

Gasoline engine WG1605 series
4-cylinder4-strokewater-cooled

gasoline engine
gasoline engine
gasoline engine
Add to favorites
Compare this product


Characteristics

Type
gasoline
Number of cylinders
4-cylinder
Other characteristics
4-stroke, water-cooled
Torque

120 Nm (88.5075 ft.lb)

Power

42.5 kW (57.784 hp)

Rotational speed

3,600 rpm (22,619.47 rad.min-1)

Description

GENERAL SPECIFICATION Engine model: WG1605-G-E3 Emission regulation: EPA Tier 2/CARB Tier 3 + EU Stage V Type: Vertical, water cooled 4-cycle spark ignited engine Fuel Type: Gasoline Cylinders: 4 Bore and stroke - mm (in): 79.0 x 78.4 (3.11 x 3.09) Displacement - L (cu.in): 1.537 (93.79) Aspiration: Naturally aspirated Aftertreatment - Three-way catalyst Rated output / speed*1 - kW (HP) / rpm: 42.5 (57.0) / 3600 Maximum torque / speed - Nm (lb-ft) / rpm: 120.0 (88.6) / 2400 Length x Width x Height*1 - mm (in): 566 x 459 x 692 (22.3 x 18.1 x 27.2) Dry weight*2 kg (lb): 120 (265) FEATURES and BENEFITS Emissions Kubota’s WG1605-G-E3 engine has been designed to comply with EPA Tier 2 / CARB Tier 3. Fuel Flexibility The installation compatibility that exists between Spark-Ignition engines (SI) and Compression-Ignition engines (CI) is convenient for customers who need fuel flexibility for their products. The Kubota WG1605 includes gasoline, LPG, and natural gas versions, as well as dual and multiple fuel versions. Options include gasoline and LPG, LPG and natural gas, and gasoline, LPG and natural gas. Durability and Reliability Kubota’s WG1605 SI engines are designed after Kubota 05 Series diesel (CI) engines and offer performance similar to our turbo diesel engines, which are known worldwide as reliable industrial engines. The WG1605 engine offers very low vibration and extremely low noise.
