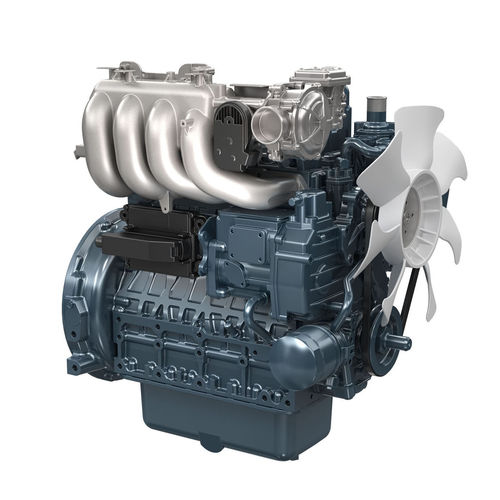

Gasoline engine WG2503-G series
4-cylinder4-strokewater-cooled

gasoline engine
gasoline engine
gasoline engine
Add to favorites
Compare this product


Characteristics

Type
gasoline
Number of cylinders
4-cylinder
Other characteristics
4-stroke, water-cooled
Torque

171 Nm (126.1231 ft.lb)

Power

45.5 kW (61.863 hp)

Rotational speed

2,700 rpm (16,964.6 rad.min-1)

Description

GENERAL SPECIFICATION Engine model: WG2503-G-E3 Emission regulation: EPA Tier 2/CARB Tier 3 + EU Stage V Type: Vertical, water cooled 4-cycle spark ignited engine Fuel Type: Gasoline Cylinders: 4 Bore and stroke - mm (in): 88.0 x 102.4 (3.46 x 4.031) Displacement - L (cu.in): 2.491 (152.0) Aspiration - Naturally aspirated Aftertreatment - Three-way catalyst Rated output / speed*1 - kW (HP) / rpm: 45.5 (61.0) / 2700 Maximum torque / speed - Nm (lb-ft) / rpm - :171.0 (126.1) / 1800 Length x Width x Height*1 - mm (in): 646 x 509 x 761 (25.4 x 20.0 x 30.0) Dry weight*2 kg (lb): 195 (430) FEATURES and BENEFITS Emissions Kubota’s WG2503-GL-E3 engine has been designed to comply with EPA Tier 2 / CARB Tier 3. Fuel Flexibility The installation compatibility that exists between Spark-Ignition engines (SI) and Compression-Ignition engines (CI) is convenient for customers who need fuel flexibility for their products. The Kubota WG2503 includes gasoline, LPG, and natural gas versions, as well as a dual fuel (gasoline and LPG) version. Durability and Reliability Kubota’s WG2503 SI engines are designed after Kubota 03 Series diesel (CI) engines. While keeping the same footprint as the V2403 diesel, they offer performance similar to that of our turbo diesel engines, which are known worldwide as reliable industrial engines. The WG2503 engine offers very low vibration and extremely low noise.
