video corpo

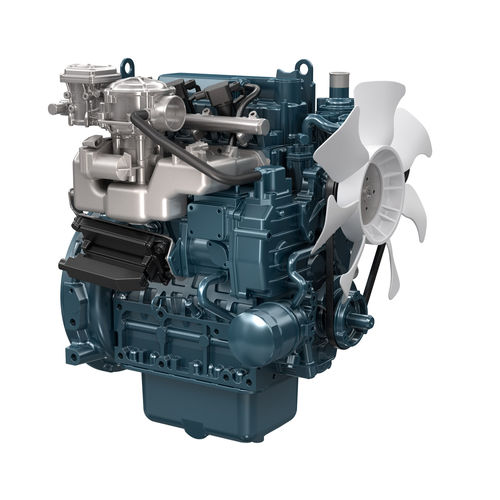

Gasoline engine WG1903 series
3-cylinder4-strokewater-cooled

gasoline engine
gasoline engine
gasoline engine
Add to favorites
Compare this product


Characteristics

Type
gasoline
Number of cylinders
3-cylinder
Other characteristics
4-stroke, water-cooled
Torque

133 Nm (98.0958 ft.lb)

Power

35 kW (47.587 hp)

Rotational speed

2,700 rpm (16,964.6 rad.min-1)

Description

GENERAL SPECIFICATION Engine model: WG1903-G Emission regulation: EPA Tier 2/CARB Tier 3 + EU Stage V Type: Vertical, water cooled 4-cycle spark ignited engine Fuel Type: Gasoline Cylinders: 3 Bore and stroke - mm (in): 88.0×102.4 (3.465×4.031) Displacement - L (cu.in): 1.868 (114.0) Aspiration: Naturally aspirated Aftertreatment: Three-way catalyst Rated output / speed*1 - kW (HP) / rpm: 35.0 (46.9) / 2700 Maximum torque / speed - Nm (lb-ft) / rpm - : 133 (98.1) / 1800 Length x Width x Height*1 - mm (in): 551 × 534 × 701 (21.7 × 21.0 × 27.6) Dry weight*2 kg (lb): 165 (364)

Catalogs

No catalogs are available for this product.

See all of KUBOTA Engine‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
