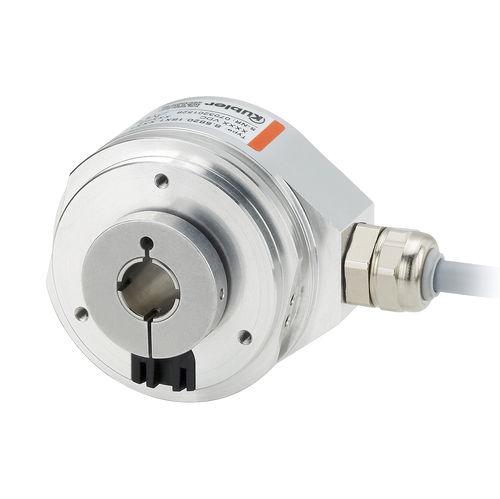

Incremental rotary encoder 5824opticalhollow-shaftIP66
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Protection level
- standard, IP66, IP40
- Other characteristics
- high-speed
- Housing diameter
58 mm
(2.28 in)
Description
Reliable
Resilient
High speed
Dimension Ø 58 mm
5.000 ppr incremental
Max 12 mm hollow shaft, blind hole
Max 12 mm hollow shaft, through
Sine output with reference signal – for drive technology.
The incremental encoders 5804 / 5824 have a SinCos interface. They are particularly suitable for use in drive technology.
These encoders are preferably used in applications where a standard SinCos interface is sufficient.
High performance
High resolution up to 5000 pulses per revolution.
Maximum speed up to 12000 revolutions per minute.
High IP protection up to max. IP66.
Variable
Shaft and hollow shaft variants.
With cable or plug connection.
