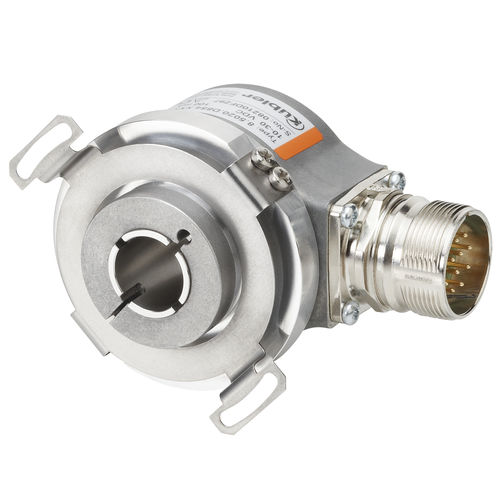

Incremental rotary encoder Sendix KIH50
opticalhollow-shaftRS-422

incremental rotary encoder
incremental rotary encoder
incremental rotary encoder
Add to favorites
Compare this product


Characteristics

Type
incremental
Technology
optical
Construction
hollow-shaft
Output signal
RS-422
Protection level
robust, IP65
Housing diameter

50 mm
(1.97 in)

Description

Economical Ideal for simple machines Robust bearing structure Dimension Ø 50 mm 5.000 ppr incremental Max 15 mm hollow shaft, through The economical sensor solution. The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines. Robust Resistant zinc pressure die-cast housing and protection up to IP65. Wide temperature range from -20°C to +70°C. Prevent machine downtime thanks to robust bearing construction in "Safety-Lock™ Design". Flexible Suitable connection variants for each specific case: Cable connection, M12 connectors and M23 connectors. Versatile mounting options. Up to 5000 pulses per revolution.
