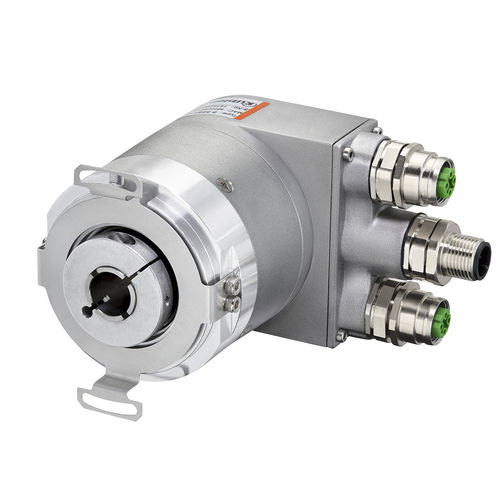

Absolute rotary encoder Sendix 5878

optical16-bit16-bit

Rapid ramp-up < 1 sec Isochronous Real-Time Mode Reliable Industry 4.0 / IIoT ready For real-time communication: Industrial Ethernet encoders with PROFINET IO-interface. The absolute encoders Singleturn Sendix 5858 / 5878 with PROFINET IO interface and optical sensors can be used in all applications with Profinet technology. These encoders support IRT mode and are therefore ideally suited for real-time applications. Reliable Suitable for all Profinet applications by using the encoder profile 4.1. With IP67 protection and a robust housing construction, it is optimally suited for the toughest external operating conditions. Flexible Use in IRT mode. Cycle time ≤ 1 ms. Firmware updater allows easy extension of features without disassembling the encoder. Fast, simple, error-free connection with M12 plug.
