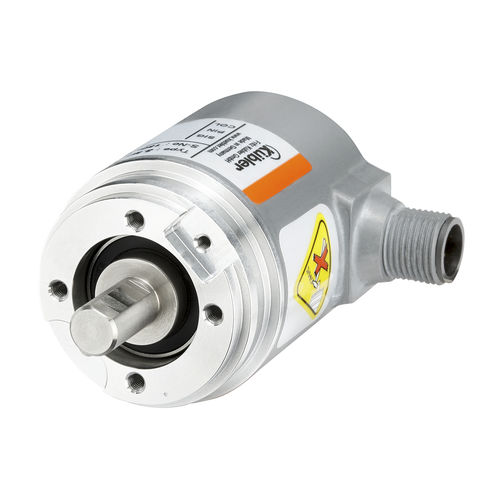

Absolute rotary encoder Sendix M3651A
magneticsingle-turnanalog

absolute rotary encoder
absolute rotary encoder
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
magnetic
Construction
single-turn
Output signal
analog
Protection level
rugged, rugged, IP65, IP67
Applications
industrial
Housing diameter

36 mm
(1.42 in)

Shaft diameter

10 mm
(0.39 in)

Description

Resilient Wear-free Magnetic – robust Dimension Ø 36 mm Max 10 mm shaft, with flat surface Max 1/4" shaft, with flat surface Magnetic singleturn encoder with analog interface. The Sendix M3651A and Sendix M3671A singleturn encoders with analog interface and magnetic sensor technology are particularly flexible in use due to their diverse interfaces and measuring ranges. A green LED as reference point and a red LED as error indicator simplify both installation and error diagnosis. Reliable and insensitive Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors. Reduced number of components ensures magnetic insensitivity. IP67 protection and wide temperature range -40 °C ... +85 °C. Application oriented Current output 4 ... 20 mA. Voltage output 0 ... 10 V or 0 ... 5 V. Different measuring ranges. Set input for easy start-up.
