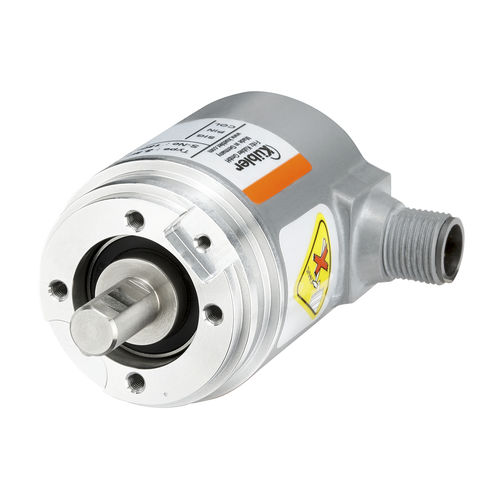

Absolute rotary encoder Sendix M3653A
magnetic14-bit14-bit

absolute rotary encoder
absolute rotary encoder
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
magnetic
Absolute encoder resolution
14-bit
Absolute encoder revolution number
14-bit
Construction
single-turn
Output signal
with SSI interface
Protection level
IP65, IP67
Applications
industrial
Housing diameter

36 mm
(1.42 in)

Shaft diameter

10 mm
(0.39 in)

Description

Resilient Wear-free Magnetic – robust Dimension Ø 36 mm 14 bits singleturn Max 10 mm shaft, with flat surface Max 1/4" shaft, with flat surface Magnetic singleturn encoder with SSI interface. The Sendix M36 is a magnetic singleturn encoder in compact design. It is characterized by robustness, reliability and cost-efficiency. Reliable and insensitive Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors. Reduced number of components ensures magnetic insensitivity. IP67 protection and wide temperature range -40 °C ... +85 °C . Application oriented Absolute accuracy ±1°. Repeat accuracy ±0.2°. Short control cycles, clock frequency with SSI up to 2 MHz. Max. resolution 14 bit.
