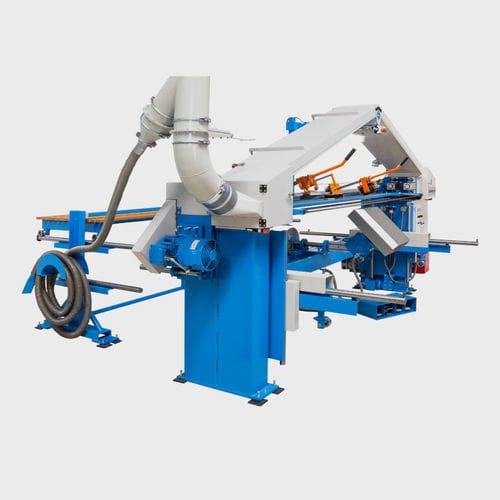

Surface grinding machine ZBS series

for metal sheetsPLC-controlledstationary

The Twin Belt Grinding Machine is built for the roughing and finishing on welded edges, corners and surfaces on flat and mid-size workpieces out of steel, stainless steel, and aluminum, i.e. doors, frames, cabinets, housings, hoods, furniture parts, frame parts in automotive and aircraft – manufacturing, round bins, cylinders, heaters etc. Application areas: Machinebuilding industry Automotive- and aircraft industry Lifter manufacturer Furniture industry Home appliance Electrical cabinet production Steelwork / Steel-service-center Options and variations: Workpiece handling device, manually (incl. additional F/B – rotate and swiveling unit with brake system) Add. contact drum Workpiece automation with add. motorized table Automatic table movement (motorized) Add. machine table and storage (stationary or movable) Scissor lifter (w/ or w/o motorized drive unit) Dust exhaust for different materials Robotec-Handling (automated, motorized) Extended stands for grinding of coloumns and coverplates, which are longer than the working area Advantages of the Twin-Belt Grinding Machine Type ZBS: Savings of approx. 50% on working time by use of the 2 separate grinding belts for roughing and finishing: Only one handling and setup of the workpiece Further savings of approx. 25% by use of the handling device: The workpiece can be orientated on 5 axes and can be prepared on all sides in one operation Manually preparation and pre-grinding on welded seam can be avoided, because the grinding belts can be tensed very smooth and then rotated by 90°. The operator can reach almost all edges and corners of the workpiece and polish the surface
