Surface grinding machine PBM series

workpiecePLC-controlledwith rotary table

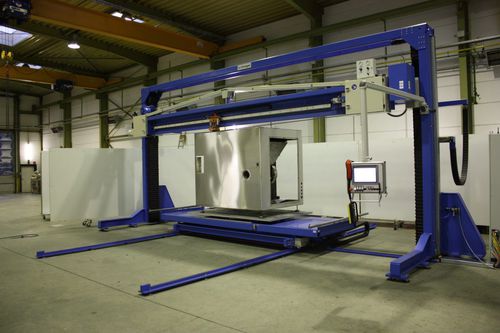

The Portal Belt Grinding Machine Type PBM with 90° rotatable grinding unit is built for the horizontal and vertical finishing on voluminous workpieces out of steel, stainless steel, and aluminum, i.e. switch cabinets, housings, hoods, machine frames, mixer, tumbler, pharma-container, heater, cover sheets, etc. Application areas: Machinebuilding industry Automotive- and aircraft industry Wagon manufacturer Home appliance Electrical cabinet production Steelwork / Steel-service-center Options / Variations: Workpiece automation with add. motorized table, also usable for manual operation Scissor lifter with motorized drive unit Rotate turnstile mounted on top of scissor lift Controls with add. R/C – control handheld Machine frame driven with guiding tracks Dust exhaust for different materials Special handling jigs for different workpieces (tubes, tanks, boxes, etc.) Advantages of the Portal Belt Grinding Machine Type PBM: Due to the build with the gantry style machine frame and floor clearance, especially bulky and tall pieces can be machined Even heavy weight workpieces (up to 3 tons) can be easily and proper machined By the clearance in horizontal and vertical movement the workpieces can easy and safe adjusted on the scissor lift With the rotatable grinding unit of 0°-90° the workpieces can be machined in one setup on back and top side (horizontal and vertical), which saves a marginal time in adjusting and set-up-time Use of the optional rotate turnstile will save another portion of set-up-time due to the work on all 4 sides and top in one hit
