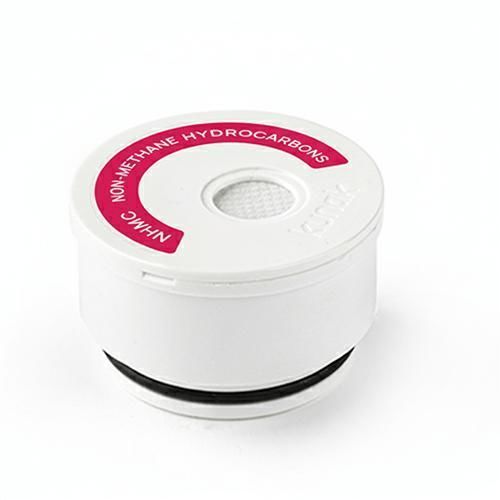

NMHC hydrocarbon sensor

ozonefor air quality monitoringcompact

Product Overview
Smart cartridge designed by Kunak that integrates a sensor capable of accurately and reliably measuring non-methane hydrocarbons levels.

• NMHC sensor with GasPlug TECHNOLOGY and patented design
• Reliable real-time data on NMHC

Where are they found?
Non-methane hydrocarbons (NMHC) are mainly emitted by anthropogenic sources related to energy and transport such as combustion from gasoline and diesel engines, industrial boilers, traffic, refineries, petrochemical plants, port terminals, and service stations. In addition, they are generated during forest fires and agricultural biomass burning, and to a lesser extent by natural sources such as vegetation and organic matter decomposition. These emissions accumulate in urban, transport, and industrial areas, and can disperse on a large scale, contributing to regional air pollution.
Why are they harmful?
Many NMHC are toxic or carcinogenic and can cause respiratory irritation, headaches, and neurological effects, posing chronic health risks. Photochemically, they are key precursors of tropospheric ozone and secondary organic aerosols, which worsen smog and PM2.5 episodes. Furthermore, the ozone generated damages vegetation, reduces crop yields, degrades ecosystems, and contributes to climate change. The most severe episodes occur in cities and industrial hubs during heat waves and atmospheric stagnation, particularly affecting vulnerable populations.
NMHC cartridge
The NMHC cartridge incorporates a new state-of-the-art sensor designed for applications requiring reliable and affordable monitoring of non-methane hydrocarbons. The Kunak algorithm corrects the effects of temperature and humidity, enabling accurate measurements from very low concentrations (ppb) up to 5 ppm. Its compact design, cost-effectiveness, and cutting-edge performance make it an ideal solution for continuous monitoring and leak detection.
Technical specifications
Type: N. A.
Unit of measurement: µg/m³, ppb
Measurement range: 0-5,000 ppb
Resolution: 1 ppb
Operating temperature range: -30 to 60ºC
Operating RH range: 10 to 99 %RH
Recommended RH range: 15 to 90 %RH
Operating life: > 2 years
Guarantee range: 30 ppm
Limit of Detection (LOD): 5 ppb
Repeatability: 6 ppb
Response time: < 120 sec
Typical accuracy: —
Typical Intra-model variability: < 3 ppb

Characteristics / Technical Specifications

• Sensor type: Non-methane hydrocarbons (NMHC)
• Technology: GasPlug, patented design
• Measurement range: 0-5,000 ppb
• Resolution: 1 ppb
• Limit of Detection: 5 ppb
• Repeatability: 6 ppb
• Response time: < 120 sec
• Operating temperature: -30 to 60ºC
• Operating humidity: 10 to 99 %RH (recommended 15 to 90 %RH)
• Operating life: > 2 years
• Guarantee range: 30 ppm
• Unit of measurement: µg/m³, ppb
• Compact and cost-effective design
• Continuous monitoring and leak detection
