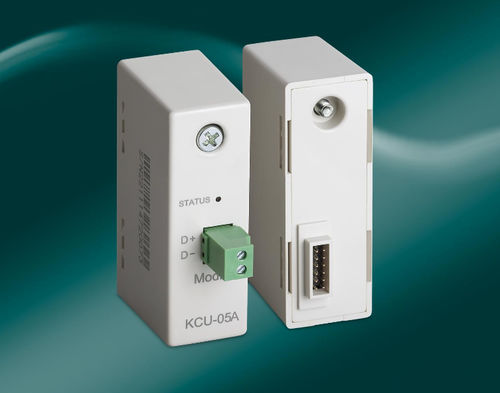

RS485 communication module KCU-05A

Modbus RTU

Using Modbus RTU Protocol, KCU-05A is capable of monitoring and controlling the real-time operation of gensets remotely via RS-485. Through Modbus Protocol, users can directly set the control parameters without manipulating the panel, which turns efficient remote monitoring and control into reality.
Design for KUTAI ATS-245/ATS-385/ATS-465、ATS-22A-DC、ATS-245-DC、ATS-245AG、ATS-332、ATS-342、ATS-PLC、AMF-10、AMF-11、GCU-100、GCU-3000


Features

• The slave address (or ID address) of the RS485 Modbus network can be set from 1 to 99.
• Automatically reads device setting values and sets the addresses and transmission speed (baud rate) in the Modbus communication protocol
• Equipped with LED status indicator
