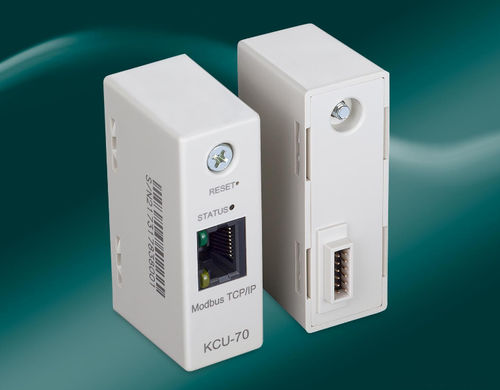

Modbus TCP communication module KCU-70

Ethernetremote

Modbus TCP/IP is also known as RTU communication protocol, its communication interface to the Ethernet. Adding with KCU-70, the user can remote control and monitor Kutai ATS and Generator Controller on PC. KCU-70 supports manual setting or automatic acquisition of IP network connection.
Design for KUTAI ATS-245/ATS-385/ATS-465、ATS-22A-DC、ATS-245-DC、ATS-245AG、ATS-332、ATS-342、ATS-PLC、AMF-10、AMF-11、GCU-100、GCU-3000


Features

• Support manual setting or automatic acquisition of IP network connection
• Number of connections: 3
• Support 10/100 Base-T network transmission (IPv4)
• IP Port : 502 (Factory preset)
• Status Indication LEDs
