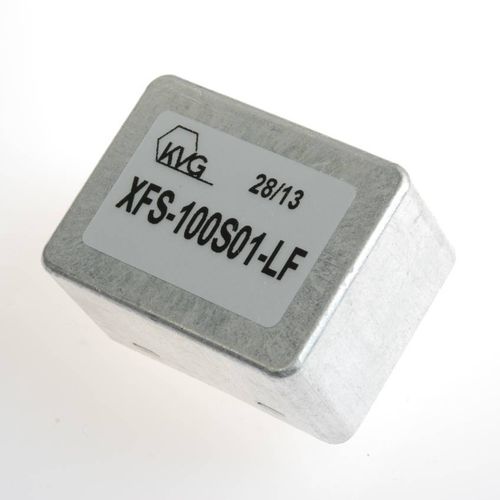

Passive electronic filter XFS series
band-pass

passive electronic filter
passive electronic filter
Add to favorites
Compare this product


Characteristics

Bandwidth
band-pass
Type
passive
Frequency

Min.: 2.603 MHz

Max.: 120 MHz

Description

Crystal and LC based Notch filter from 2 up to 8 poles with defined centre frequencies between 2,0 MHz and 200 MHz Other frequencies on request Full metal housing hemetically sealed for wave or hand soldering Full metal housing with cable connectors SMD FR4 package Temperature range up to -40°C...+85°C RoHS and REACH compliant very good shock and vibration resistance max. input power 10 mW (+10 dBm) Applications: Blocking of a specific frequency and passing of all other frequencies

Catalogs

No catalogs are available for this product.

See all of KVG Quartz Crystal Technology GmbH‘s catalogs
