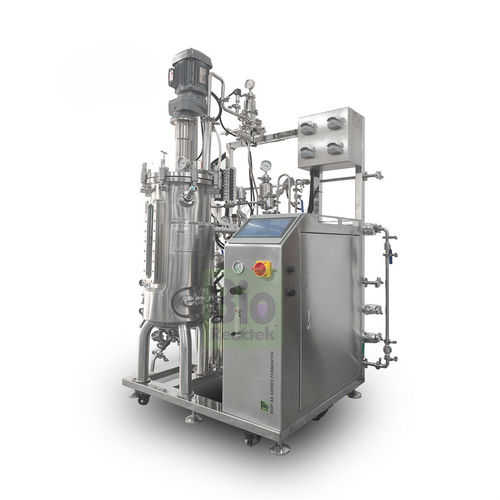

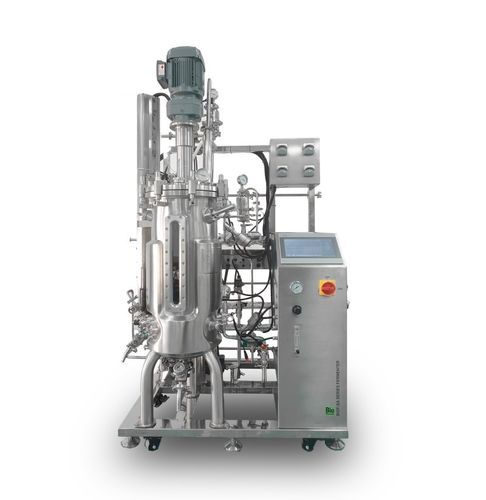

Stirred-tank bioreactor / fermentor BIOF-SA series

fed-batchfor the pharmaceutical industryautomatic

Description
New BIOF-SA automatic series stainless steel fermenters meet pilot scale-up and small-scale production needs. Available capacities from 10 L to 2000 L; tank bodies use certified stainless steel manufacturers to ensure reliable quality. Standard features include automatic SIP, automatic tank pressure control, automatic lid lifting, optional MFC flow control, optional CIP, and conformity with GMP requirements.

Highlights

• Flagship advanced full automatic stainless steel bioreactor fermenters
• 2nd Generation human interface — easy to use; function modules customizable
• Optional online modules: CO2, ORP, live cell concentration, OD, exhaust gas analysis
• Tank materials: SS304 or SS316L; precision stainless steel machining and welding
• Famous-brand main parts; ISO 9001 and CE certification; 3Q verification documents available

Product features

• BIOF Feed-Tec™ feeding system: manual and automatic timed feeding; cascade control with pH and DO; supports equation feeding and index feeding for high-density fermentation
• BIOF Easy-Tri™ Audit Trail: automatically stores all records, supports traceability, advanced permissions to restrict export/deletion, HMI supports independent audit trails and intelligent sequence control
• Modular design: independent modules per tank group, supports multi-tank and amplified tank systems, flexible combinations without pipeline redesign
• One-click operating system: one-click fermentation and sterilization, custom parameter configuration, power-outage recovery, three-level authority management, expandable to host computer and IoT remote

Functional modules / expansion (overview)
ORP, foam detection, live cell concentration (online biomass), Raman (process optimization), CO2 online exhaust detection (CER/OUR/RQ calculation), online OD (continuous turbidity), exhaust gas analysis — all available as optional online modules.

Sterilization, cleaning and valves
Automatic online high-pressure steam sterilization with angle seat and diaphragm steam valves, imported steam trap; sterilization temperature design 100–145 °C; 4-way steam sterilization: jacket, tank, valve, filter. Optional CIP system: closed-circuit circulation, in-situ cleaning of tanks/pipes/valves without disassembly; automatic temperature control and remote water replenishment.

Safety & sanitation
Integrated tank bottom valve design eliminates dead spots, supports online steam sterilization, reduces contamination risk. Exhaust gas condenser and multi-stage filtration (0.2 μm coarse, 0.01 μm fine, PTFE) available. Tank pressure sensor with PID-controlled proportional valve for precise pressure regulation.

Key construction & mechanical design
Stainless steel inner tank (AISI 316L / AISI 304L), jacket AISI 304L; manufacturing standard ASME BPE-2019 and PED welding standards; surface polish in contact with material Ra ≤ 0.4. Modular impeller options: inclined blade, spiral, paddle, turbine, propeller. Stirring drive: Panasonic servo or SEW geared motor with PID speed control.

Included controls & user interface
Controller: Siemens SIMATIC S7-1200 series with PID program control; HMI TPC10; BIOF-Control V2.2 supports multi-tank one-click control, audit trail and sequence control; supports expansion to host and IoT systems.

Videos / Demonstrations
Product page includes embedded product video tours demonstrating tank operation, automatic sterilization, lid lifting and modular functions.

Caractéristiques / spécifications techniques

• Model / Series: BIOF-SA series (typical models: BIOF-S10A, S30A, S50A, S100A, S200A, S300A, S500A, S1000A, S2000A)
• Tank size range: 10 L to 2000 L (normal capacities available; custom sizes supported)
• Working volume examples: 10 L model 3–8 L; 30 L model 8–24 L; 50 L model 12–40 L; 100 L model 25–80 L; 200 L model 40–160 L; 300 L model 80–240 L; 500 L model 100–400 L; 1000 L model 200–800 L; 2000 L model 400–1600 L
• Inner tank material: AISI 316L / AISI 304L stainless steel
• Jacket material: AISI 304L stainless steel
• Manufacturing standards: ASME BPE-2019, PED welding standards
• Surface polish (product-contact): Ra ≤ 0.4
• Stirring: Panasonic servo motor or SEW geared motor; PID control
• Stirring speed ranges (examples): up to 20–800 rpm (model dependent), control accuracy ±1 rpm
• Impeller types: inclined blade, spiral, paddle, turbine, propeller (selectable)
• Temperature control: PT100 sensor; PID control; plate heat exchanger, electric heating jacket and cooling water; range approx. ambient+5 °C to 60 °C; display accuracy 0.1 °C; control accuracy ±0.1 °C
• pH probe: METTLER TOLEDO / Hamilton; range 0–12; PID control; accuracy ±0.02; automatic acid/alkali dosing (peristaltic pump or CO2 MFC)
• DO probe: METTLER TOLEDO / Hamilton; 0–200%; PID control; accuracy ±1%
• Air/gas supply: imported glass rotor flowmeter standard; supports CO2/O2/N2 and multi-channel gas strategies; optional upgrade to thermal mass flow meters (MFC)
• Gas distributor: annular distributor or microporous diffuser
• Filters: coarse 0.2 μm and fine 0.01 μm PTFE; heated exhaust filter housing optional
• Exhaust gas condenser: AISI 316L / AISI 304L stainless steel
• Feeding system (standard): four high-precision flip-top peristaltic pumps for feed, acid, alkali and defoamer (PID interlock control); additional pumps can be added
• Peristaltic pump brands: Bioreactek / Watson-Marlow (standard)
• Mechanical seal: Burgmann
• Feed bottle: SCHOTT (Germany)
• Glass rotor flow meter brand: Dwyer (USA)
• Temperature sensor brand: JUMO (Germany)
• Low-voltage electrical components: Schneider
• Valves: Hebron / Gemu / Bürkert (diaphragm / manual / automatic diaphragm valves)
• Circulating pump: Grundfos (Denmark)
• Optional mass flowmeter (MFM / MFC): Vögtlin (Switzerland)
• Tank pressure sensor / regulating valve: BDISENSORS (Germany); tank pressure automatic control 0–0.2 MPa; control accuracy ±0.001 MPa
• Audit trail & data security: BIOF Easy-Tri™ automatic record storage, permission control, protect export/deletion
• Options / expansions: CIP system, MFC gas control, online ORP/OR/foam/biomass/OD/Raman/CO₂/exhaust gas analysis, weighing modules (tank/feed), multi-tank system integration
• Certifications: ISO 9001, CE (standard configurations)
