Stirred-tank bioreactor / fermentor BIOF-D series

laboratoryautomaticautomated

Short description

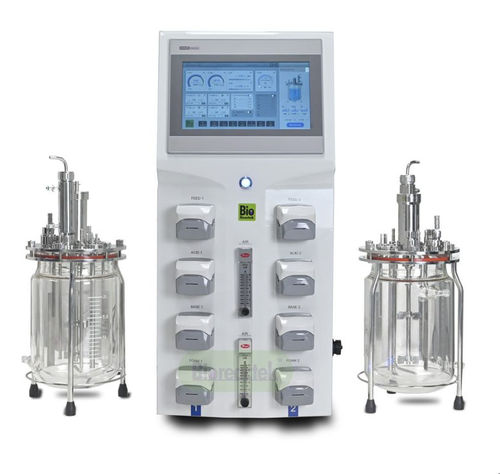

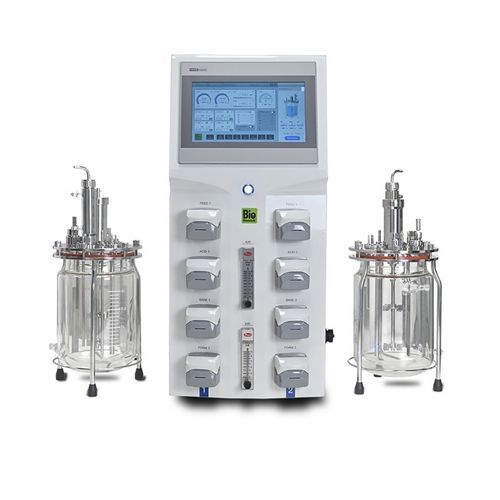

BIOF-D series dual-tank parallel bioreactor is designed for laboratories requiring simultaneous or independent culture and fermentation runs. The integrated host with 10.1-inch multi-touch HMI, Siemens SMART-200 PLC and LF-Control 2.0 software controls two glass vessels (nominal 1–15 L) with multi-pump support, online monitoring and data recording/export.

Key features

• Parallel dual-tank configuration for simultaneous or independent control of two glass fermenters (1–15 L nominal each).
• Integrated host with 10.1-inch high-end touch HMI and scalable expansion.
• BIOF-D2 controller: Siemens SMART-200 PLC with LF-Control 2.0 for curve display, historical data export and remote monitoring.
• Four standard peristaltic pumps for feed/antifoam; expandable via quick-release interfaces up to 8 pumps.
• Top-mounted mechanical stirring driven by high-precision servo motor, 0–1200 rpm, with selectable paddles (single-layer inclined, flat blade).
• High-quality mechanical seal (JOHN CRANE) and quick-install coupling for reliable assembly and contamination control.
• High-temperature borosilicate glass tanks with AISI 316L stainless steel lids; charging factor ≥80%.
• Temperature control by PT100 sensor and insulated electric heating blanket; control range +5–65 °C, sterilization capability up to 130 °C.
• Foam management via sensitive defoaming probe, mechanical defoaming paddle and peristaltic antifoam dosing.
• Sterile autoclavable sampling system; dual design supports flame inoculation as alternative.
• Air handling with Dwyer rotameter standard (electromagnetic optional) and Sartorius 0.2 μm sterilizing filters.

Controller / Instrumentation
BIOF-D2 controller with LF-Control 2.0: Siemens SMART-200 PLC, 10.1-inch HMI, standard cabinet with HSSP finish, common quick-release interfaces, curve display and historical data export; supports PC connection for centralized or remote monitoring and joint control.

Materials and Core Components
Tank: borosilicate glass body with 316L stainless steel lid
pH and DO probes: METTLER TOLEDO
Mechanical seal: JOHN CRANE
Peristaltic pumps: LONGER
Refill bottles: SCHOTT
Air flowmeter: Dwyer
Sterilizing filters: Sartorius 0.2 μm

Technical summary (table-style)
TANK - Nominal volumes: 3L, 5L, 10L, 15L combinations; charging factor ≥80%; material: high-temperature borosilicate glass, AISI 316L lid.
STIRRING SYSTEM - Top mechanical stirring; servo motor; speed 0–1200 rpm; paddle options: single-layer inclined and flat blade.
TEMPERATURE CONTROL - PT100 sensor; insulated electric blanket; control range +5–65 °C; sterilization up to 130 °C.
FOAM SYSTEM - Sensitive foam probe; mechanical defoaming paddle; peristaltic antifoam dosing.
FEEDING - Peristaltic feed pumps; manual or automatic control modes.
pH & DO CONTROL - METTLER TOLEDO probes; pH control range 2.00–12.00; DO control 0–200% saturation; autoclavable sensors.
CONTROLLER - BIOF-D2 with LF-Control 2.0; Siemens PLC; 10.1-inch HMI; curve display, recording and export.
OTHERS - Air intake: Dwyer rotameter standard; optional electromagnetic flowmeter; filtration: Sartorius 0.2 μm sterilizing filters; sterile autoclavable sampling; chassis approx. 565 × 310 × 680 mm; power AC100–240 V; ~1.2 kW.

Specifications

• Model: BIOF-D (dual-tank parallel bioreactor).
• Nominal volume configurations: 1L*2, 3L*2, 5L*2, 10L*2, 15L*2; example working volumes vary by model.
• Tank construction: borosilicate glass body with AISI 316L lid; charging factor ≥80%.
• Stirring: high-precision servo motor; 0–1200 rpm; top mechanical stirring with dedicated paddles and quality mechanical seal.
• Temperature: PT100 sensor; insulated electric blanket; control +5–65 °C; sterilization up to 130 °C.
• pH & DO: METTLER TOLEDO probes; pH 2.00–12.00; DO 0–200% saturation; autoclavable electrodes.
• Pumps: LONGER peristaltic pumps standard (4); expandable up to 8 via common interfaces.
• Air handling & filtration: Dwyer rotameter; optional electromagnetic flowmeter; Sartorius 0.2 μm sterilizing filters.
• Controller & software: Siemens SMART-200 PLC; BIOF-D2 with LF-Control 2.0; 10.1-inch HMI; online monitoring and data export.
• Size & power: chassis ~565 × 310 × 680 mm; AC100–240 V; ~1.2 kW.
