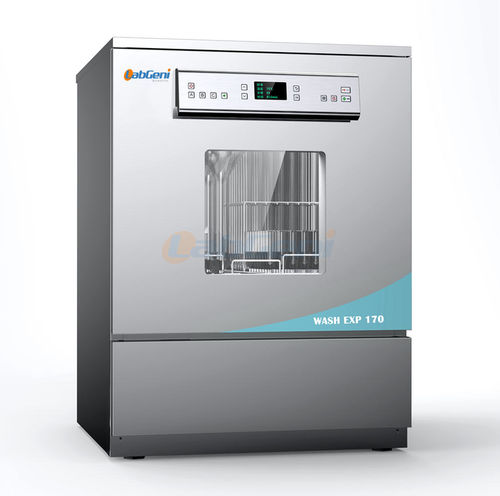

Automatic glassware washer WASH EXP 170

laboratoryspraydry

Description
Automatic laboratory glassware washer for cleaning Erlenmeyer flasks, volumetric flasks, pipettes, injection vials, test tubes, Petri dishes and similar items. Designed for use in food testing, agriculture, pharmaceutical, forestry, environmental analysis, laboratory animal facilities and quality control laboratories. Supports modular baskets and configurable cleaning cycles to integrate into laboratory workflows.

Qualification

• ISO 9001 quality management and ISO 14001 environmental management certified
• EU CE certification
• Post-cleaning residual water testing (pH, TOC, conductivity) by accredited organizations
• Third-party residue test reports available
• Manufacturer holds multiple patents (copies of certificates and reports available)

Technical performance

• Wash start delay: programmable timed start to optimize workflow
• Operation interface: bilingual (Chinese/English) menu with multi-level password protection
• Stainless-steel waterproof keypad, IP65 rating; laser-engraved corrosion-resistant buttons
• Viewing window in tempered float glass for clarity and sound insulation
• OLED color display: self-luminous, high contrast, wide viewing angle
• Microcomputer intelligent control with RS-485 hub, optocoupler isolation and imported chips for reliable signal transmission
• Data interfaces: RS-232 printing and USB; built-in storage for cleaning records
• Automatic door open/close with ITL induction; door locked during cleaning and auto-opens/positions after cycle to assist cooling/drying
• Automatic basket identification and automatic water volume adjustment per load
• Variable-frequency pump start to limit hydraulic shock; pump overheating protection for extended service life
• Built-in pipeline heating; 6D pipeline design with zero-dead-angle welding to prevent contamination and meet GMP/FDA requirements
• Circulation system with pressure monitoring, anti-foam cleaning technology and sprinkler speed monitoring with obstacle alarm
• Modular basket frame design: upper and lower layers usable together or independently without reconfiguring baskets
• ICA injection-type basket frame with quick-plug connections and positioning grooves for flexible loading
• Rear water inlet design with at least two outlets for upper/lower baskets; automatic mechanical shut-off valves
• Built-in conductivity monitoring for full-process rinsing parameter control and intelligent cleaning adjustment
• Imported double-layer explosion-proof water inlet pipe with pressure/temperature resistance, anti-scaling and anti-leakage monitoring valve; automatic shutoff on failure

Basic parameters

• Model: WASH EXP 170 / WASH EXP 170D
• Dry system: N/A (WASH EXP 170) | Hot air dry (WASH EXP 170D)
• Water inlet: tap water / pure water
• Power supply: 220V / 380V
• Cleaning chamber volume: 170 L
• Circulating pump power: 750 W
• Heating power: 4 kW or 9 kW
• Circulation speed: 500 L/min
• Material: inner tank 316L mirror stainless steel; outer shell 304 brushed stainless steel or plastic-sprayed
• Program control: 35 standard + 100 custom procedures; supports two-layer modular baskets
• Cleaning capacity per cycle: up to 476 injection vials, 42 × 100 ml volumetric flasks, 238 pipettes
• Temperature display accuracy: 0.1 °C

Technical specifications

• Model: WASH EXP 170 (SKU: WASH EXP 170)
• Cleaning chamber volume: 170 L
• Circulating pump power: 750 W
• Heating power options: 4 kW or 9 kW
• Power supply: 220V / 380V
• Circulation speed: 500 L/min
• Material: inner tank 316L mirror stainless steel; outer shell 304 brushed stainless steel or plastic spraying
• Program control: 35 standard + 100 custom procedures; supports two-layer modular baskets
• Cleaning capacity: up to 476 injection vials, 42 × 100 ml volumetric flasks, 238 pipettes per cycle
• Interfaces: RS-232, USB; built-in data storage
• Display: OLED color module
• Protection and monitoring: conductivity monitoring, pressure monitoring, anti-foam, pump overheat protection, anti-leakage solenoid valve
• Door: automatic open/close with ITL induction and safety locks
• Compliance: ISO9001, ISO14001, EU CE; third-party residue testing and certification available
