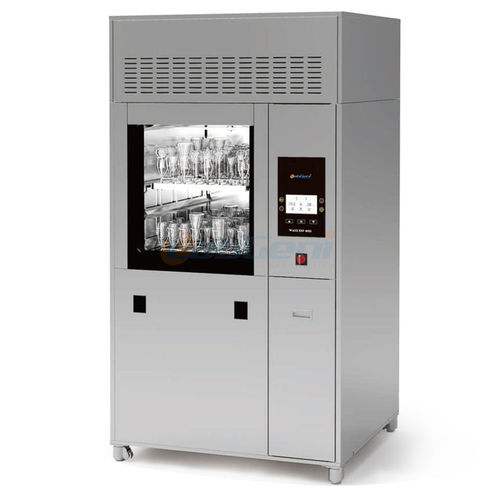

Automatic glassware washer WASH EXP 480D

laboratorywaterdry

Product description
Automatic laboratory glassware washer designed for cleaning and drying Erlenmeyer flasks, volumetric flasks, pipettes, injection vials, test tubes, petri dishes and similar laboratory utensils. Suitable for laboratories in pharmaceutical, food, agriculture, environmental testing and laboratory animal facilities where validated, repeatable cleaning cycles are required.

Qualification

• Certified to ISO 9001 quality management and ISO 14001 environmental management
• Compliant with EU CE requirements
• Third-party residue testing reports (pH, TOC, conductivity) available after cleaning
• Third-party residue test reports and certificates provided
• Manufacturer holds multiple patents (>5)
• Copies of certificates, test reports and patent documentation available on request

Technical performance

• 7-inch smart LCD touch screen with flexible user interface
• Programmable delayed start and timed start functions to optimise workflow
• Chinese and English menu, multi-level password protection and one-key factory reset
• Illuminated cleaning chamber with tempered float glass viewing window for durability and sound insulation
• Data traceability: automatic logging of cleaning cycles, detergent consumption and HEPA filter life
• Microcomputer control with RS-485, optocoupler isolation and imported main chip for signal stability and long-distance transmission
• RS-232 and USB interfaces; can connect to PC, printer, USB drive; built-in storage for cleaning records
• Visualized vertical automatic glass doors with double-layer glass to separate clean and contaminated zones
• Front-through loading; automatic basket identification and automatic water volume adjustment
• Variable frequency drive for circulation pump to adjust pump speed and reduce hydraulic impact on fragile items
• Circulation pump with overheating protection; built-in heating elements; 6D pipeline design with full-weld construction to minimise residue and contamination (meets GMP/FDA guidelines)
• Pressure monitoring, anti-foam cleaning technology and sprinkler speed monitoring with obstacle alarm
• Modular basket design: multiple stacking configurations without changing basket structure; ICA injection-type interchangeable baskets with quick-plug fixation
• Side water inlets with automatic closing mechanical valves and imported explosion-proof electronic inlet pipe with anti-leakage monitoring
• Built-in conductivity monitoring for full-process rinse water quality control and automatic adjustment of cleaning procedures
• Electronic detectors for detergent flow and bubble detection with automatic alarms
• Double drying system with dual HEPA filter layers and HEPA failure alarm; adjustable drying time and temperature
• Drawer-type detergent storage for safe, convenient replacement of original cleaning buckets

Basic parameters
Model: WASH EXP 480D
Dry system: Hot air dry
Water inlet requirements: Tap water / pure water
Power supply: 220V / 380V
Cleaning chamber volume: 480 L
Circulating pump power: 1500W + 900W
Heating power: 9000W / 18000W / 27000W
Circulation flow rate: 0–1300 L/min (adjustable)
Material: Inner tank 316L mirror stainless steel; outer shell 304 brushed stainless steel or plastic spray
Program control: 35 standard programs, 100 custom programs; IQ/OQ/maintenance special programs
Cleaning capacity examples: 1000 injection vials per run; 189 × 100 ml volumetric flasks; 448 pipettes (70 cm height) vertical cleaning
Temperature display accuracy: 0.1℃
Dimensions (H × W × D): 2000 × 1250 × 1105 mm

Technical specifications

• Model: WASH EXP 480D
• Cleaning chamber volume: 480 L
• Inner tank: 316L mirror stainless steel
• Outer shell: 304 brushed stainless steel or plastic spraying
• Power supply options: 220V or 380V
• Circulating pump power: 1500W + 900W
• Heating power selectable: 9000W, 18000W or 27000W
• Circulation flow rate: adjustable 0–1300 L/min
• Drying: hot air with double HEPA filtration and HEPA failure alarm
• Control: 7-inch smart LCD touch screen, multi-language menu, multi-level password
• Program capacity: 35 standard + 100 user programs; IQ/OQ/maintenance programs
• Interfaces: RS-232, USB; built-in data storage
• Safety: explosion-proof inlet pipe, anti-leakage valve, automatic solenoid shutdown on fault
• Monitoring: conductivity, pressure, anti-foam, sprinkler speed, detergent flow and bubble detection
• Loading: front-through, modular baskets, ICA interchangeable injection baskets
• Cleaning capacity examples and dimensions as above
