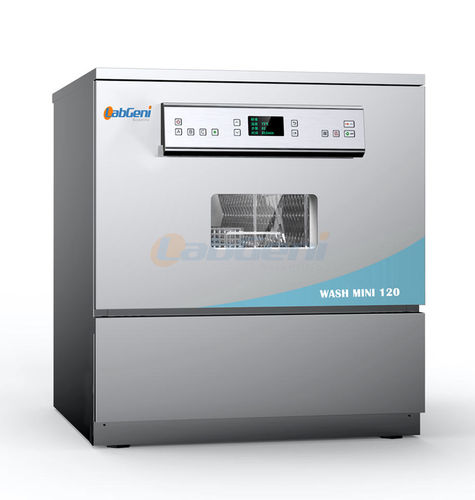

Automatic glassware washer WASH MINI 120

laboratoryspraywater

Product overview
Mini glassware washer designed for laboratory applications in food, agriculture, pharmaceutical, forestry, environmental testing, laboratory animal facilities and related fields. Suitable for cleaning Erlenmeyer flasks, volumetric flasks, pipettes, injection vials, test tubes, Petri dishes and similar glassware.

Qualification

• ISO9001 quality management and ISO14001 environmental management certified
• Complies with EU CE requirements
• Authoritative residual water test reports available (pH, TOC, conductivity)
• Third-party residue test reports provided
• Company holds more than 5 patents
• Copies of certificates, test reports and patent documents available

Technical performance

• Wash start delay: time-start and timer-start functions to optimize workflow
• Operation interface: Chinese/English menu with multi-level password protection
• Stainless steel waterproof keyboard panel, IP65 rating; laser-engraved corrosion-resistant keys
• Viewing window: tempered float glass for durability and improved sound insulation
• OLED color display: high contrast and wide viewing angle
• Microcomputer intelligent control with RS-485 hub, optocoupler isolation and imported chips for signal integrity and long-distance transmission
• RS-232 printing interface and USB: connect to PC, printer or USB storage; built-in storage for cleaning data
• Automatic door opening by ITL induction: door locked during cleaning; automatic unlocking and positioning after cycle for cooling and drying
• Automatic door closing by ITL induction: automatic locking without manual action
• Circulation pump with overheat protection
• Built-in pipeline heating tube for a clean chamber layout
• 6D pipeline design with zero-dead-angle welding to minimize residues; compliant with GMP and FDA guidelines
• Circulation system with pressure monitoring and anti-foam cleaning technology
• Sprinkler system with speed monitoring and obstacle alarm
• Modular basket frame design: single-layer and double-module compatibility
• Injection-type ICA baskets: interchangeable, quick plug-in with positioning grooves
• Imported double-layer explosion-proof electronic safety inlet pipe: pressure and temperature resistant, scale-resistant, with anti-leakage monitoring and automatic solenoid shutoff on fault
• Remarks: parameters marked * are mandatory

Basic parameters
Model: WASH MINI 120 | WASH MINI 120D
Dry system: N/A | Hot air dry
Water inlet requirements: tap water / pure water | tap water / pure water
Power supply: 220V / 380V | 220V / 380V
Volume of cleaning chamber: 126 L | 126 L
Heating power: 4 kW / 9 kW | 4 kW / 9 kW
Circulation system speed: 320 L/min
Material: inner tank 316L mirror stainless steel; outer shell 304 brushed stainless steel or plastic spraying
Program control: 35 standard programs + 100 custom programs
Cleaning capacity: up to 238 injection vials per cycle
Temperature display accuracy: 0.1 °C

Features / Technical specifications

• Model variants: WASH MINI 120 and WASH MINI 120D
• Cleaning chamber volume: 126 L
• Cleaning capacity: up to 238 injection vials per cycle
• Power options: 220V or 380V
• Heating options: 4 kW or 9 kW
• Circulation flow: 320 L/min
• Inner tank: 316L mirror stainless steel
• Outer shell: 304 brushed stainless steel or painted plastic
• Program control: 35 standard + 100 customizable
• User interface: Chinese/English menu, OLED color display, multi-level password protection
• Keyboard: IP65 stainless steel waterproof panel, laser-engraved buttons
• Connectivity: RS-232, USB, built-in storage for cleaning records
• Safety and automation: ITL induction automatic door, pump overheat protection, pressure monitoring, anti-foam and obstacle alarm systems
• Hygienic design: built-in pipeline heating, 6D zero-dead-angle welding (GMP/FDA compliant)
• Basket system: modular ICA injection-type baskets with quick plug-in positioning
• Water inlet: imported double-layer explosion-proof safety inlet with anti-leakage monitoring and auto shutoff
• Certifications: ISO9001, ISO14001, CE; third-party residue and residual-water testing (pH, TOC, conductivity)
• Patents: multiple patents (over 5)
