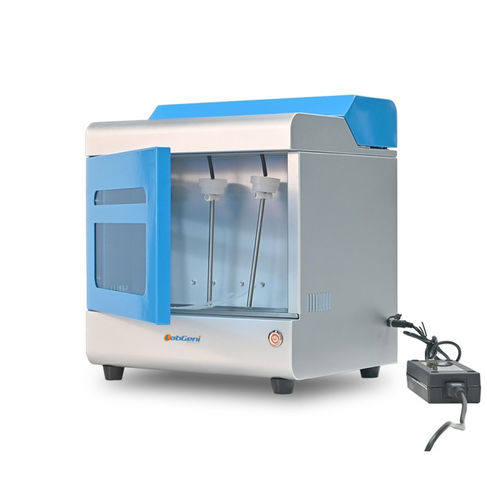

Fat extractor FAE3000S

laboratory

Overview
The FAE3000S automatic extractor performs solvent extraction of water samples for petroleum and animal and plant oil determination. It is designed for surface water, groundwater, sewage and industrial wastewater analyses using carbon tetrachloride as the extraction solvent.

Standards compliance
Conforms to national standard HJ637-2012 Water quality — Determination of petroleum and animal and plant oil — Infrared photometric method, and is developed for standardized water-sample extraction.

Operation and capacity
The FAE3000S automates solvent dosing and extraction. The operator measures and loads samples, sets extraction parameters, and starts the cycle. The unit quantitatively dispenses carbon tetrachloride, carries out the extraction and transfers the extract to collection bottles. It accepts sample volumes from 0 to 1000 ml and can extract up to three samples simultaneously; typical single-sample extraction time is 3–10 minutes.

Applications
Suitable for oil determination in surface water, groundwater, sewage and industrial wastewater, and for automatic quantitative extraction of water samples using carbon tetrachloride.

Main instrument characteristics

• Semi-automatic extraction with automatic solvent volume control and delivery to extraction bottles.
• Simultaneous processing of one to three water samples.
• Improved cleaning process with no manual solvent addition required.
• Stereo side-stirring extraction system to enhance extraction efficiency and analytical accuracy.
• Reduced operator exposure by minimizing manual handling and dosing of carbon tetrachloride.
• Extraction components made of fully anticorrosive, non-oleophilic PTFE to reduce cross-contamination between samples of different concentrations.
• Equipped with a magnesium silicate adsorption column to remove animal and plant oil interference during oil measurement.

Technical index
Sample volume range — 0–1000 ml
Solvent sampling quantity — 25–100 ml
Simultaneous extractable samples — 3 water samples
Extraction efficiency — >95%
Repeatability — RSD <5%
Extraction time — 3–10 min per sample
Operating temperature — 1°C–40°C
Instrument dimensions — 450 × 350 × 245 mm
Instrument weight — 5 kg
Power supply — (220±22)V, (50±1)Hz, 100 VA

Technical specifications

• Sample volume: 0–1000 ml
• Solvent sampling: 25–100 ml
• Simultaneous extraction: up to 3 water samples
• Extraction efficiency: >95%
• Repeatability: RSD <5%
• Extraction time: 3–10 min per sample
• Operating temperature: 1°C–40°C
• Dimensions: 450 × 350 × 245 mm
• Weight: 5 kg
• Power: (220±22)V, (50±1)Hz, 100 VA
