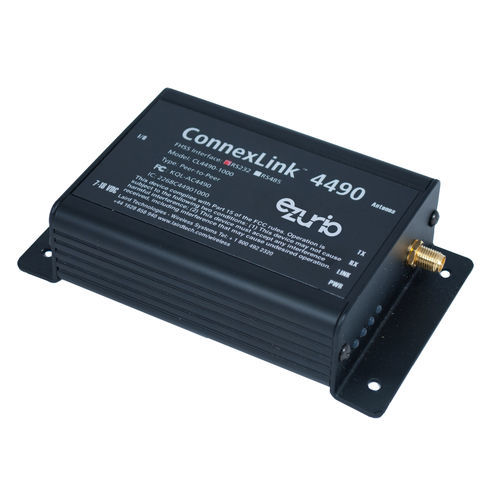

Radio module CL4490 series

ConnexLinkTM stand-alone radio modules set up in minutes to virtually cut the cables between serial devices. Their flexibility and competitive price allow users to quickly upgrade wired terminals to cordless operation in industrial commercial and residential applications. Each unit is small and easily portable for use in mobile and temporary settings as well as for fixed installations. Optional software enables custom configurations based on user needs. ConnexLink implements a proprietary communication protocol to provide secure local data transmissions. Because it uses FHSS technology the data remains reliable over distances of up to four miles line-of sight. Use of license-free frequency bands ensures that units are ready to use with no further certification requirements. Note: Some variants of the CL4490 have reached end of production and are available on a limited basis only. Find the End of Life Announcement in the Documentation tab below. Only the following part numbers are affected:- CL4490-200-02- CL4490-200-05- CL4490-200-07- CL4490-200-08- CL4490-200-485 Specifications Dimensions (H x L x W) 35.56 x 111.76 x 68.58 mm Transmit Power (Max) Up to +28 dBm Protocols FHSS Wireless Protocol Antenna Options Dipole; RPSMA jack (female) Chipset (Wireless) TI CC1010 Connector Type RS232,RS485 Frequency 902 – 928 MHz (US/Canada) 915 – 928 MHz (Australia, US/Canada) Logical Interfaces RS232 or RS485 Network Architecture Server/Client Power Supply AC transformer to 7.5Vdc via 6 foot cable (183cm) Product Benefits • Durable industrial-grade enclosure • Transmits around corners through walls • Point-to-point & point-to-multipoint setups • Ranges up to 4 miles
