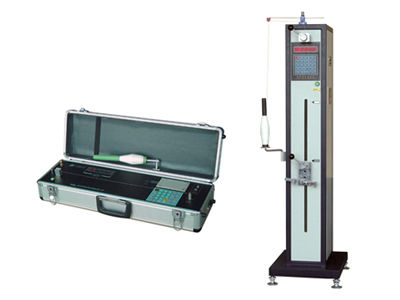

Electronic testing machine YG061C

tensile strengthautomaticfor yarn

The tester is a necessary apparatus for test the breaking strength and breaking elongation of yarn accurately.The tester adopts the CRE mechanism and controlled by microcomputer.The results can be not out only printed with printer but also displayed with LED.Keeping function when the power source is cut off(It can store up data when the power source suddenly is cut off). Standards:GB/T3916ISO2062、GB/T398、GB/T5324 etc. Technical parameter Type - YG061C - YG061T - YG061J Measurement range - 3000cN Guang - 250mm、500mm - 500mm Pre-tension - 1cN～100cN Measure precision - ±0.5% Range of elongation - 500mmMax40% Drawing speed - 250mm/min、500mm/min - 500mm/min Testing times - 1～100times Interval print - 2～60 setting range Yarn density(tex) - 1～999.9 setting range Power supply - AC220V±10% 50Hz Power - 180W - 50W Other fittings - Printer - Functions - Constant breaking time: 20s±3s或10s±1.5s Strain rate of constant speed: 250mm/min、500mm/min - 500mm/min Form of data output - Isplay with LED and valuein single time and statistic value are printed in report forms mode YG061C、T Volume:315mm×355mm×1105mm N.W.:35.8kg Packing dimension:464mm×424mm×1204mm(Mainframe) 528mm×448mm×308mm(Printer) YG061J Volume:625mm×220mm×140mm Packing dimension: 800mm×300mm×230mm PREV：YG061F Electronic Single Yarn Strength Tester NEXT：YG061Z Automatic Electronic Single Yarn Strength Tester
