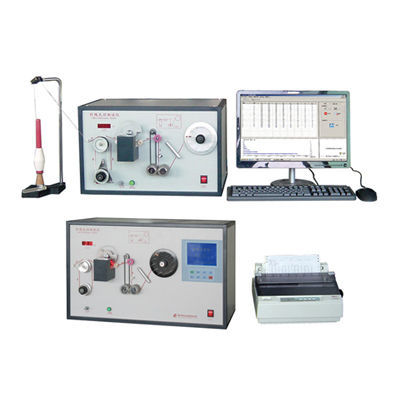

Hairiness test equipment YG171L/LB

automaticfor yarn

YG171L/LB Hairiness Tester Patedted design to make yarn hairiness not overwhelmed.Applied step less adjustable tension,and can dynamically detect and display.It can test yarn hairiness surface length,hairiness index and its distribution.Optional increase the national static test techonolgy which is the only scientific assessments of hairiness index. Standards:FZ/T01086 etc. Technical parameter 1.Hairiness length range: 1mm～8mm or 1～9mm hairiness length which can be tested on one time 2.Hairiness length precision: <0.1mm 3.Hairiness distinguishing rate: <0.5mm 4.Testing speed: 15m/min,30m/min,60m/min(可选配10m/min,100m/min) 5.Yarn testing snippet length: 1m～1000m setting freely 6.Continuous testing times: 1～10000 setting freely 7.Tension adjust range: 5cN～15Cn 8.Form of data displyed: display by CRT&print record 9.Statistic value: Average value of hairiness index of hairiness,unevenness value,extreme difference 10.Power supply: AC 220V±10% 50Hz 11.Power: 200W YG171L Volume:530mm×430mm×330mm N.W.:25kg YG171LB Volume:730mm×430mm×430mm N.W.:45kg
