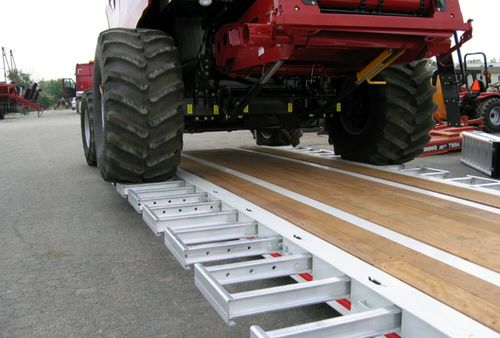

Equipment trailer 835-AG

goosenecktandemtowed

Proven Solutions The 835 Series Ag Detachables are designed with an innovative four-beam frame and gooseneck which give the operator versatility required to safely load and legally transport today’s heavy, wide and tall equipment. The 835 can be a rigid 3-axle or be equipped with an optional flip third axle. Versatility The 835Ag frame design features a flat deck with a loaded height of 18-1/4” off the ground. Coupled with a low tare weight, The 835 can haul the latest combines, tillage, haying equipment and planters with up to 32′ of usable deck space. Safety and Patented Gooseneck Design A single hydraulic control lever lowers, detaches and activates the patented gooseneck carrier arms, which allows the ease and simplicity of detaching and loading directly onto the lower deck which is only 11¼” off the ground. You will never have to drive up and over the trunnion again. Frame and Features • *Capacity: 35 Ton (70,000 lbs.) • Deck Rating: 60,000 lbs. in 12′ • Estimated Base Weight: 18,000 lbs., (835AG) +/- 3% • Main Frame: Fabricated 11 1/4″ Beam, 100,000 PSI Yield Flanges • Deck Width: 102″ • Loaded Deck Height: 18-1/4″ • Loaded Ground Clearance: 7″ • Decking: 1-1/2″ Apitong, Full Width • Crossmembers: 5″ x 3″ Rec. Tube on 18″ Centers • Hitch: Patented Automatic Gooseneck Lock Engagement • Gooseneck: 11′ 9″ • Pin Setting: 15″ • Swing Clearance: 84″ • Side Extension: 27″ Aluminum Telescoping Side Extensions (Lower Deck) • Accessories: 835AG – 48′, 51′ or 53′ Frame Prepared with Bkts, Electric and Air for 3rd Axle Flip • Tool Box: None Standard • Gooseneck Tie Downs: D-Rings: (2) Each at Front Corner; (2) Each at Back
