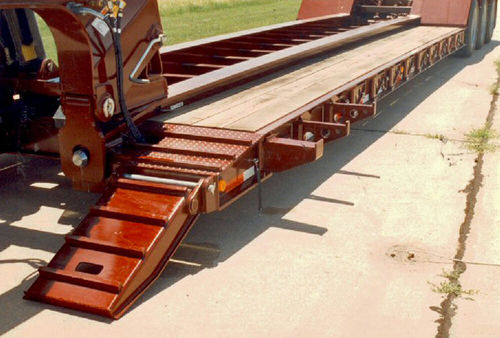

Gooseneck trailer 325C

3-axlefor industrial materialsmodular

Heavy-Duty Detachable The Landoll 325C detachable is a 50 Ton non-ground bearing detachable with a fifth-wheel type automatic gooseneck lock engagement. The lock / unlock level can visually be seen from the tractor cab. A rugged low profile scraper style gooseneck with vertical lift cylinders has the ability to get you hooked up on the roughest of job sites or just out on the open road. The 325C frame is a modular frame. You can choose to keep the 325C as a rugged common three axle lowboy trailer or by choosing the options of an HD Gooseneck you can have up to 160” of swing for jeep applications or the removable trunnion allows you to select from deck extensions or beam decks. The rear trunnion can accommodate flip axles for the extra heavy loads. This 50 Ton frame is rated in 10’. This concentrated rating is the shortest common rating out there. Make sure you always check the number of feet a trailer is rated in. A true sign of the frame strength. Frame and Features • *Capacity: 50 Ton (100,000 lbs.) • Deck Rating: 100,000 lbs. in 10′ • Estimated Base Weight: 18,900 lbs. (48′) • Main Frame: Fabricated 16″, 100,000 PSI Flange • Crossmembers: 8″ High Tensile I-Beams on 24″ Centers • Gooseneck: 10′ 7″ • Pin Setting: 15″ • Swing Clearance: 84″ • Hitch: Fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock / Unlock Visual from Tractor Cab • Deck Width: 102″ • Loaded Deck Height: 24″ • Loaded Ground Clearance: 8″ • Decking: 1-1/2″ Nominal, Apitong Track Area • Accessories: Boom Trough, Rail Stiffeners, Ramp Brackets and Outrigger Brackets • Storage Area: 41″W x 24″L x 10″D Between Main Frame • Tie Downs: (10) D-Rings
