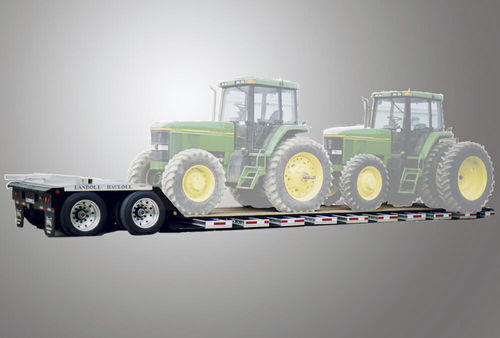

Gooseneck trailer 825-AG

2-axletowedfor industrial materials

Proven Solutions 800 Series Ag Detachable Trailers are designed with an innovative four-beam frame and gooseneck give the operator versatility required to safely load and legally transport today’s heavy, wide and tall equipment. Versatility The 800 frame design features a flat deck with a loaded height of 17” off the ground. Coupled with a low tare weight, The 825 can haul the latest combines, tillage, haying equipment and planters with up to 32′ of usable deck space. Safety and Patented Gooseneck Design A single hydraulic control lever lowers, detaches and activates the patented gooseneck carrier arms, which allows the ease and simplicity of detaching and loading directly onto the lower deck which is only 11¼” off the ground. You will never have to drive up and over the trunnion again. Frame and Features • *Capacity: 27.5 Ton (55,000 lbs.) • Deck Rating: 50,000 lbs. in 16′ • Estimated Base Weight: 16,400 lbs. (49′) 16,950 lbs. (51′) • Main Frame: Fabricated 10″, 100,000 PSI Flange • Deck Width: 102″ • Loaded Deck Height: 17″ • Loaded Ground Clearance: 7″ • Decking: 1-1/2″ Apitong, Full Width • Crossmembers: 5″ x 3″ High Tensile Tubing on 18″ Centers • Hitch: Automatic Gooseneck Lock Engagement • Gooseneck: 12′ • Pin Setting: 15″ • Swing Clearance: 84″ • Side Extension: 27″ Aluminum Telescoping Extensions (Lower Deck) (Capacity-7,000 lb. EACH Extension) • Tool Box: No Standard Tool Box • Gooseneck Tie Downs: D-Rings: 2 Each Front Corner; 2 Each Back • Lower Deck Tie Downs: Double Keyhole Chain Slots Located on 36″ Centers; Side Mounted Nylon Strap / Chain Tie Downs
