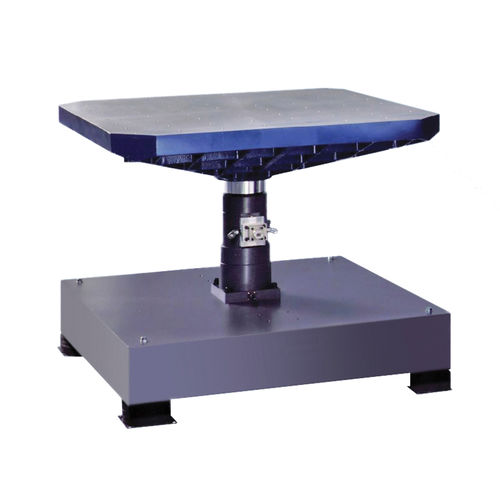

Lansmont's Model 1800 is one of the most popular model in vibration test systems. This is a good fit for many product and package testing applications.
The Model 1800 Vibration Test System is our most popular model. It is a good fit for many product and package testing applications.
The complete system features a table sized to your application, a rugged hydraulic actuator, a reliable hydraulic power supply, and Lansmont’s TouchTest Vibration Controller.
The TouchTest Vibration Controller completely integrates the test hardware, operating controls, data analysis and reporting functions.
The system can perform random vibration, Field-to-Lab® simulations, resonance search and dwell, sine sweep and repetitive bounce tests all under closed loop computerized control.
Features highlights
• TouchTest Vibration Controller for easy and safe operation
• Testing capabilities including random vibration, swept sine vibration, resonance search and dwell, repetitive bounce and Field-to-Lab® simulations
• Fully integrated pump and servo controls (all manufactured by Lansmont)
• Self-contained Hydraulic Power Supply only requiring electrical power (no cooling water needed)
• Full range of applications training programs available
• Worldwide Customer Service department
Specification highlights
FREQUENCY RANGE:
• Standard Performance: 1 – 300 Hz.
• High Performance: 1 – 500 Hz.
TABLE SIZES:
• 25.6 in. (65 cm) square
• 33.5 in. (85 cm) square
• 48 in. (122 cm) square
• 60 in. (152 cm) square
• 72 in. (183 cm) square
ACTUATOR FORCE (@ 3000 psi):
• Stall Force: 4566 lbs. (20.3 kN)
• Dynamic Force: 3044 lbs. (13.5 kN)
