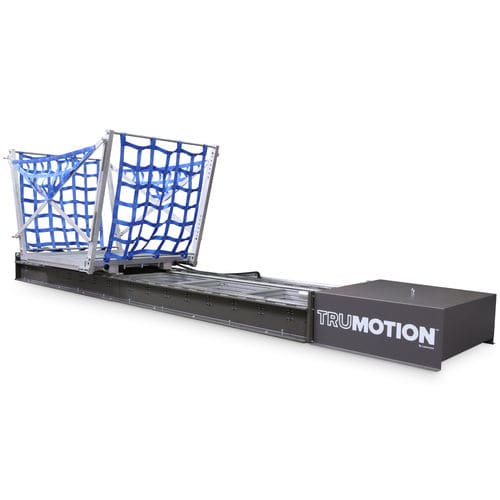

Transport testing machine TruMotion™

stabilityaccelerationmotorized

Simulate long-duration and low-frequency input forces associated with vehicle acceleration, turning and braking. Simulate long-duration and low-frequency input forces associated with vehicle acceleration, turning and braking. Developed for EUMOS 40509 testing requirements and Federal Motor Carriers Safety Administration's (FMCSA) Cargo Securement Rules. Safety and sustainability • Challenge unit load stability and integrity, determining if they will remain unitized and stable for transport. • Quantify peak displacement that occurs during test events, as well as permanent displacement that remains after testing. • Meets EUMOS 40509 Requirements and FMCSA Cargo Securement Rules. • Optional extended lengths for added performance. • User defined acceleration vs. time test input profiles. Common specs • Model: 1500 mm – 21 kW • Carriage Size: 1500 mm x 1500 mm • Carriage Weight: 204 kg (450 lb) • Max Payload: 1500 kg ( 3307 lb) • Max Bare Carriage Constant Acceleration (g) (300 ms dwell): 1.6 g • Max Carriage Constant Acceleration (g) (300 ms dwell) w/ 1500 kg: 0.85g • Max Velocity, bare carriage (m/s): 5.49 m/s (216 in/s) • Max Velocity, w/ 1500 Kg payload: 2.92 m/s (115 in/s) • Max Stroke: 3378 mm (133 in) • Overall Machine Dimensions (mm): 5863 long x 1800 wide x 1748 tall (231” x 71” x 70”) • Machine Weight (kg): 1361 kg (3000 lb) • Utilities Required: 400/460 VAC 60/50 amps (50/60 Hz)
