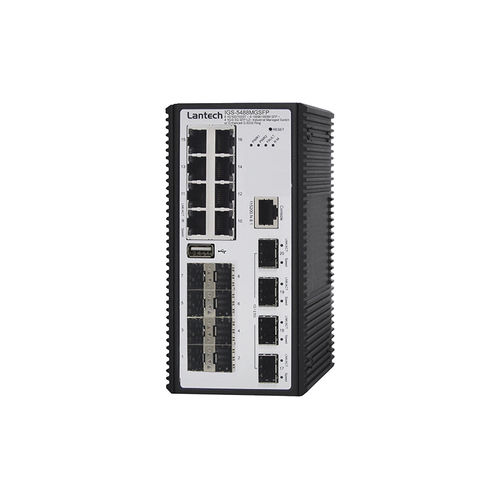

Managed ethernet switch IGS-5488MGSFP series

20 portsgigabitDIN rail

8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP w/ L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring; 24V/HV input models Dual input 24VDC voltage (24V model) or Single isolated input power 90~305VAC/120~430VDC (HV model) Support PXE to verify switch firmware with the latest or certain version on server Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP ; support MRP ring Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Dual input voltage 12~56VDC (24V model); Single isolated input power 90~305VAC/120~430VDC (HV model) Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load Wide range operation temperature (-E model):-40~75C/-40~167F; Fan-less design Lantech IGS-5488MGSFP is a high performance L2+ (All Gigabit) Ethernet switch with 8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP auto-sensing cage which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also support basic mode and enhanced mode, multiple VLAN model with easy configuration.
