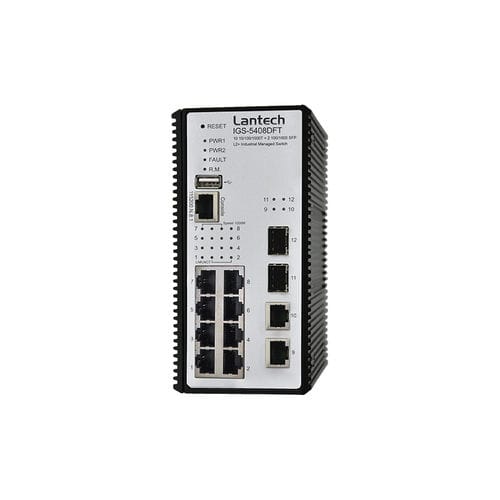

Managed ethernet switch IGS-5408DFT series

12 portsgigabitDIN rail

2 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T L2 +Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI / RSTP; support MRP ring. Miss-wiring avoidance & Node failure protection. User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI. Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Optional Environmental Monitoring** for temp., voltage and current.**(-M model) Wide range dual DC input from 36V~72V with galvanic isolation USB port to backup, restore the configuration file and upgrade firmware (-U model) Lantech IGS-5408DFT is a high performance L2+ (All Gigabit) switch with 8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN mode with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and also required in large network.
