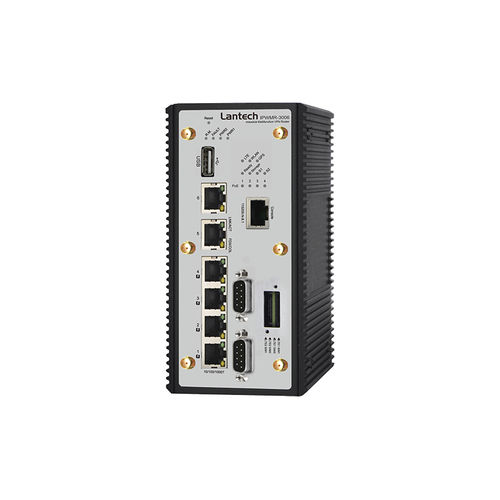

Wireless communication router IPWMR-3006

RS2324G4G LTE

IPWMR-3006 Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to 2 LTE 4G + 2 serial ports + 6 Gigabit Ethernet Switch(incl. 4 PoE) w/ Load Balancing**, TWCC**, VPN, Protocol Gateway, Storage**; 24V input Up to 2 concurrent WIFI 11ac and redundancy(1L-2AC model) Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L-1AC model/4 SIMs) Built-in 6 Gigabit Ethernet switch including4 PoE at/af w/budget 80W Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model) WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up to 6 antenna(2AC); SMA type external antenna Fast roaming**, 802.11r standard Supports AP/ BRIDGE/Client modes Air-teaming** for WIFI high-sustainability and aggregated bandwidth Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP*,AES)/ WPA2/ WPA2-PSK (TKIP*,AES) Optional TWCC** (Train Wireless Carriage Coupling)for auto wireless coupling VPN router for Multi-site VPN, OpenVPN, L2TP, IPSec, PPTP**, L2 over GRE Load Balancing** support 8 mechanism Optional EMMC Flash storage on-board** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/485 ports with 2.5KV isolation or 2x RS232 ports Input voltage selection 9~56VDC (24V model) Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; WIFI & LTE graphic signal strength & TX/RX rate display Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware*; Dual image firmware*
