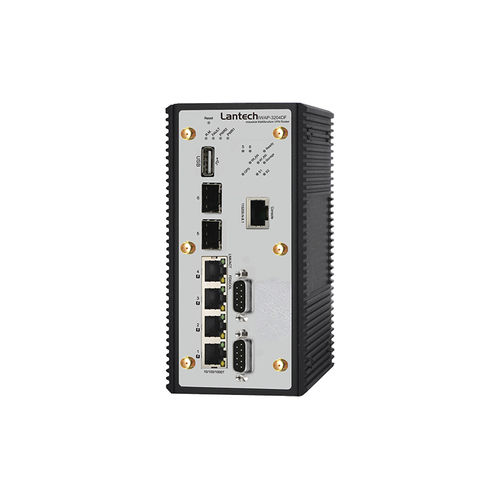

Wireless communication router IWAP-3204DF series

managedRS232WiFi

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2 serial ports** + 4 Gigabit Ethernet + 2 Dual Speed SFP w/Load Balancing, VPN, Protocol Gateway, Storage**; 24V/HV input Up to 2 concurrent WI-FI 11ac and redundancy(2AC model) Built-in 4 Gigabit Ethernet ports + 2 Dual Speed SFP port Managed Switch functions cover port management, QOS, VLAN, multicast, redundant ring and security function Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model) MIMO technology 3T3R; SMA type up to 6 external antennas Support Client-base roaming Supports AP/ Bridge/ Client/ MESH modes Support 802.11s Wireless Mesh Network VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Support NAT and Firewall Optional EMMC Flash storage on-board** Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Dual Input voltage 9~56VDC (24V model); Single isolated input power 90~305VAC/120~430VDC (HV model) Vehicle E-marking** certificate Wi-Fi graphic signal strength Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware Environmental monitoring for router inside info with voltage, current, temperature; Wi-Fi graphic signal strength ITxPT compliant w/ ignition function**
