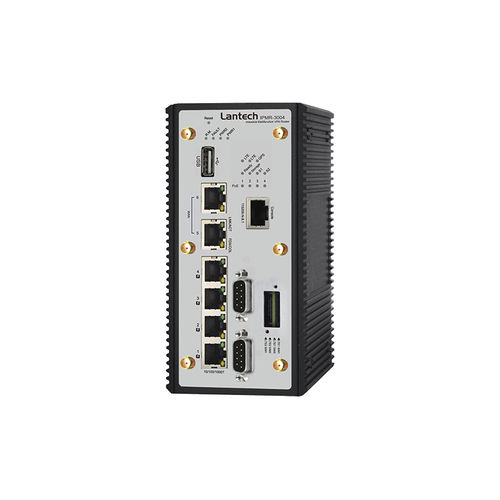

WAN communication router IPMR-3004 series

4GLTERS232

Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2 serial ports + 4 Gigabit Ethernet PoE Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage**; 24V input Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L model/4 SIMs) Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model) Built-in 4 Gigabit PoE at/af Switch with budget 80W@12V/24V/48V VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Optional eSIM chip enables router with versatile data plans** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports Input voltage selection 9~56VDC (24V model) Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; LTE graphic signal strength Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware ITxPT compliant w/ ignition function**
