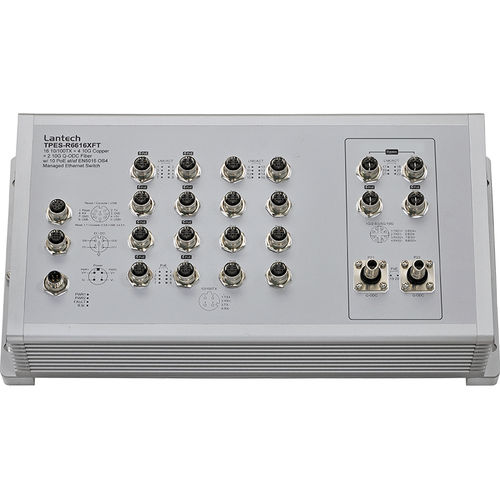

Managed ethernet switch TPES-R6616XFT
16 portsPoEEN50155

managed ethernet switch
managed ethernet switch
Add to favorites
Compare this product


Number of ports
16 ports
Other characteristics
PoE, EN50155


16 10/100TX + 4 10G Copper + 2 10G SR/LR Fiber Q-ODC OM3 w/8/10/12/16 PoE, EN50155 OS4 Managed Ethernet Switch w/ Enhanced G.8032 Ring, PXE ; WVI input Total 16 port 10/100TX + 4 10G Copper + 2 10G Q-ODC OM3 Fiber Ethernet Switch w/8/10/12 (8 copper + 2/4 uplink 10GT copper PoE ports) or 16 PoE ports Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling Support PXE to verify switch firmware with the latest or certain version on server Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP; support MRP ring Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing ; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load Optional Smart bypass 10GigaT ports in case of power failure, CPU hang (up to two pairs copper bypass and one pair fiber bypass) IP21 aluminum enclosure USB port to upload & download the configuration file Inrush current protection Optional L3Lite or IEC 61375-2-5 TBN features to be upgradable
