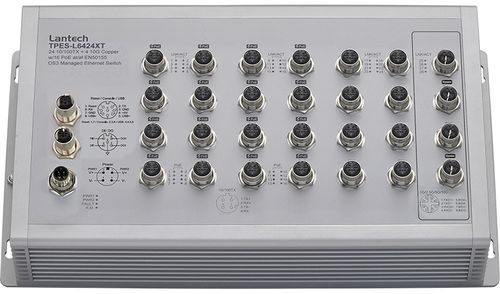

24 10/100TX + 4 10G Copper w/8/10/12/16 PoE EN50155 OS3 Managed Ethernet Switch w/ Enhanced G.8032 Ring, PXE ; WVI input
Total 24 10/100TX + 4 1G/2.5G/5G/10G Copper Ethernet Switch w/10/12 (incl.8 10/100TX + 2/4 uplink 10GT copper) or 8/16 PoE ports
Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling
Support PXE to verify switch firmware with the latest or certain version on server
Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP; support MRP ring
Miss-wiring avoidance & node failure protection
User friendly UI, including auto topology drawing; Complete CLI
Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3, TACACS+, QinQ, QoS by VLAN
Protocol based VLAN; IPv4 Subnet based VLAN
Enhanced Environmental Monitoring for temp., actual input voltage, current & total power load
Optional L3Lite or IEEE61375-2-5 TBN features to be upgradable
Optional Smart bypass on 10GT ports in case of power failure, CPU hang (up to two pairs)
IP54 aluminum enclosure
Inrush current protection
